GarbarukRear Derailleur Pulleysfor SRAM XPLR 13-Speed

$89.00

Built for

SRAM XPLR
gravel

Key specs

Speeds
Pulley set

This pairs well with

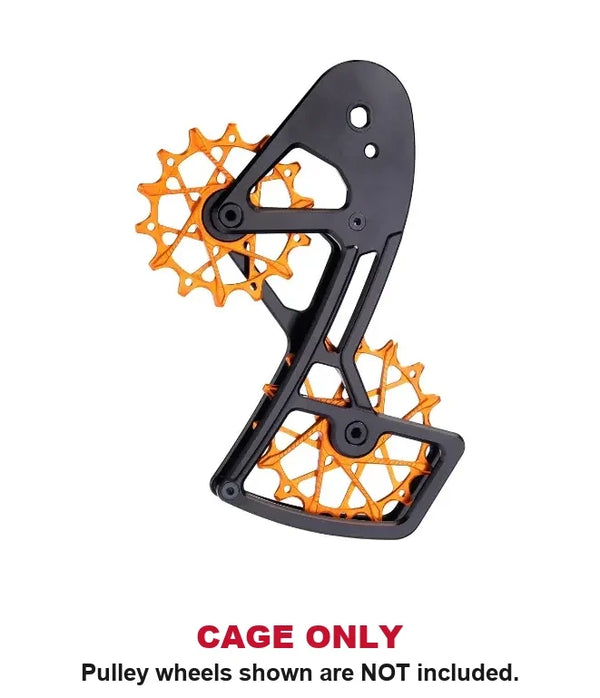

Garbaruk Rear Derailleur Cage for SRAM XPLR 13-SpeedRear derailleur cage

You may also need

Overview

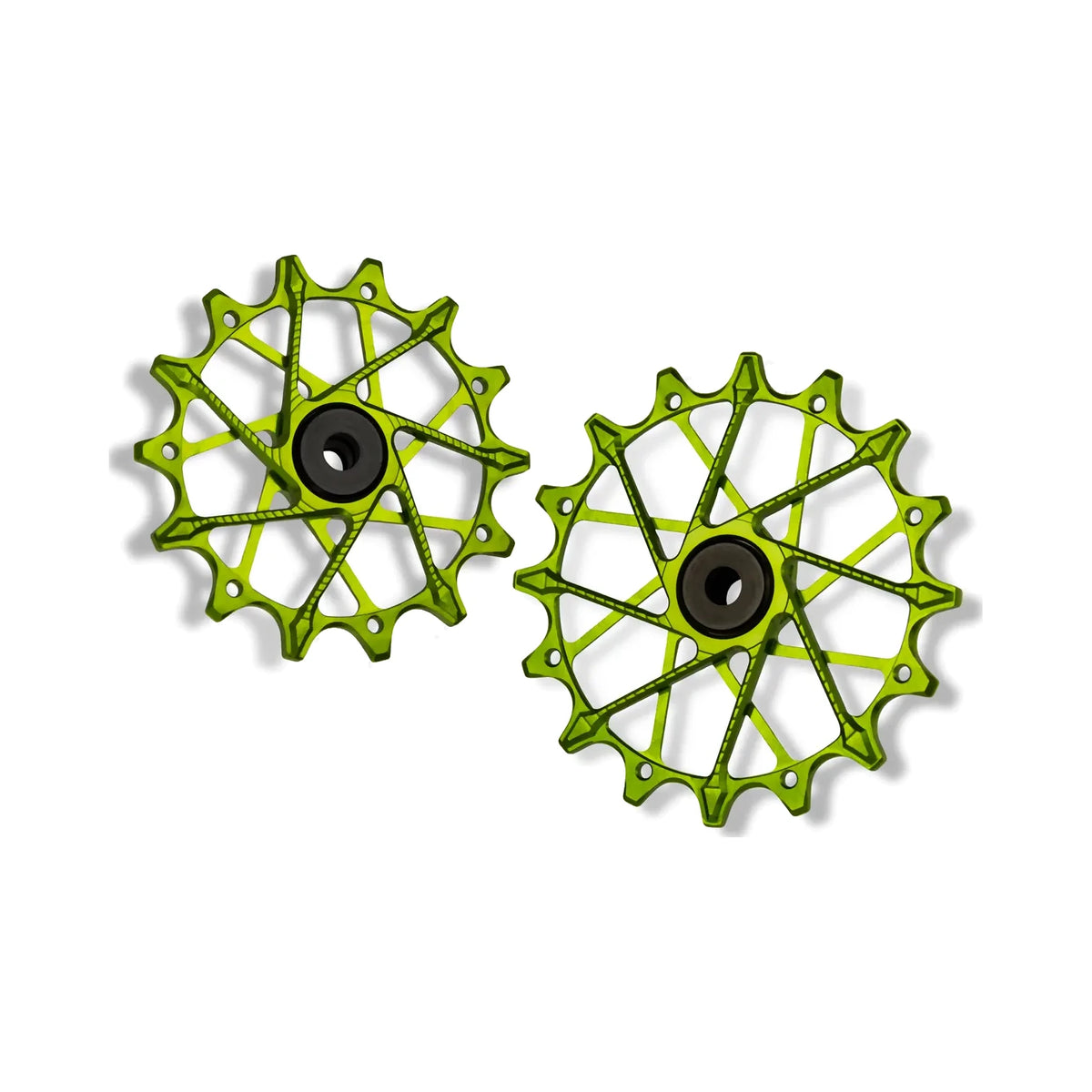

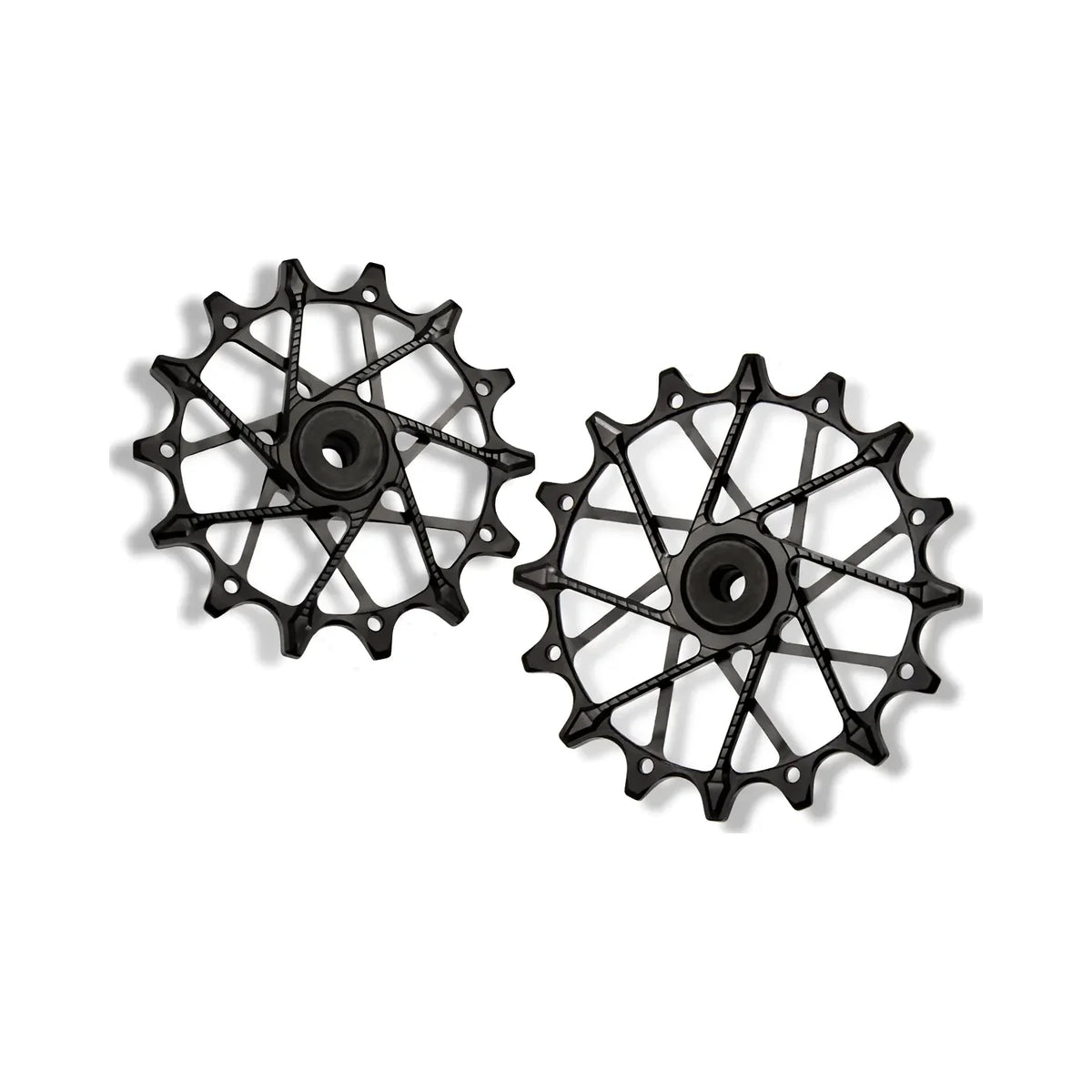

This Garbaruk pulley set replaces the pulley wheels on a SRAM XPLR 13-speed derailleur with a 14-tooth upper and 16-tooth lower pulley. The pulleys are machined from 7075-T651 aluminum, spin on sealed cartridge bearings, and are color anodized, available in eight colors. They work with the stock SRAM XPLR 13-speed cage or the Garbaruk Rear Derailleur Cage for SRAM XPLR 13-Speed, and the set weighs 30g. Garbaruk's 14T and 16T pulley sets for other drivetrains look identical to this one, but they are built to slightly different specifications and are not interchangeable.

Why we love it

We love Garbaruk pulleys for how cleanly they run and how well they are made.

01They spin on sealed cartridge bearings that keep dirt out and keep turning freely.
02Each oversized wheel is machined from 7075-T651 aluminum and color anodized, so it runs true and adds a little color to the derailleur.

Why it makes the cut. Hammer & Howl only carries parts we believe are among the best in the business. Garbaruk pulleys are a small, well-made way to round out a wide-range setup.

Specifications

Number of speeds: 13-speed
Drivetrain: SRAM XPLR
Fits derailleurs: SRAM RED XPLR AXS (RD-RED-1E-E1); SRAM Force XPLR AXS (RD-FRC-1E-E1); SRAM Rival XPLR AXS (RD-RIV-1E-E1)
Compatible cages: The stock SRAM XPLR 13-speed cage or the Garbaruk Rear Derailleur Cage for SRAM XPLR 13-Speed
Pulley set: 14T upper, 16T lower
Pulley bushings: Upper: 5 mm bore, with a thicker bushing specific to this set. Lower: 5 mm.
Bearings: Sealed cartridge
Weight: 30 g
Material: 7075-T651 Aluminum Alloy
Finish: Color anodized (8 colors)
Made with: CNC milling

Warranty

Garbaruk publishes its written warranty, including what it covers and what it excludes, at garbaruk.com/warranty-returns. We will send you a free copy of that warranty on request. Email support@hammerandhowl.com or call (206) 420-9548.

What's included

One Garbaruk pulley set for SRAM XPLR 13-speed, a 14-tooth upper and a 16-tooth lower, in the color you select

Not included: Pulley bolts. Reuse your derailleur's stock pulley bolts, or add the Garbaruk Derailleur Pulley Bolt Set.

Will it fit your bike?

Compatible with

SRAM RED XPLR AXS 13-speed derailleur (RD-RED-1E-E1)
SRAM Force XPLR AXS 13-speed derailleur (RD-FRC-1E-E1)
SRAM Rival XPLR AXS 13-speed derailleur (RD-RIV-1E-E1)
The stock XPLR 13-speed cage or the Garbaruk Rear Derailleur Cage for SRAM XPLR 13-Speed

Not compatible with

Any derailleur not listed above (SRAM XPLR 12-speed, SRAM Eagle, SRAM AXS road and eTap, and Shimano)

Confirm before ordering

If you are not sure which derailleur your bike has, confirm with your bike mechanic or contact Hammer & Howl before ordering.

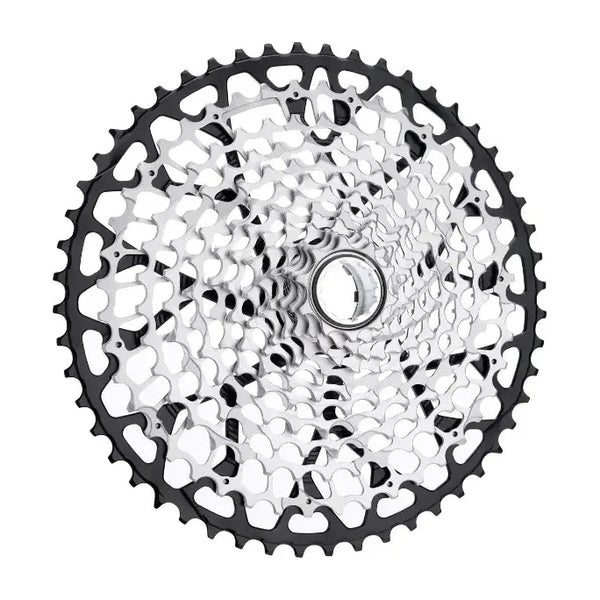

This set replaces the stock pulleys with a 14-tooth upper and a 16-tooth lower pulley. If you plan to use these pulleys with the Garbaruk 13-Speed Gen 2.0 XPLR Cassette for SRAM XD/XDR, that cassette comes with a pulley bearing cover. The cover positions the pulleys correctly for it. The bearing cover is not included with these pulleys. The Garbaruk Derailleur Pulley Bolt Set is sold separately. They are high quality bolts, but they are not strictly necessary; you can use your stock bolts if they are not damaged.

Questions

Do I need these pulleys?

No. Your derailleur works with its stock pulley wheels, so these are an upgrade rather than a requirement. They are oversized wheels machined from aluminum, spinning on sealed cartridge bearings that keep dirt out and keep turning freely, and they come in eight anodized colors.

Will these pulleys fit my derailleur?

Yes, if it is a SRAM XPLR 13-speed AXS derailleur (RED, Force, or Rival). They work with the stock XPLR 13-speed cage or the Garbaruk Rear Derailleur Cage for SRAM XPLR 13-Speed. See the Specifications and Will it fit sections for the exact derailleur models before ordering.

Do these pulleys come with the bearing cover for the 13-speed cassette?

No. The pulley bearing cover comes with the Garbaruk 13-Speed Gen 2.0 XPLR Cassette for SRAM XD/XDR, not with these pulleys. The cover positions the pulleys correctly for that cassette, so if you are pairing these pulleys with it, you already have the cover.

Can I reuse my pulley bolts?

Yes. You can use your derailleur's stock pulley bolts if they are in good condition. The Garbaruk Derailleur Pulley Bolt Set is an option, but it is not required.
