GarbarukRear Derailleur Cagefor SRAM XPLR 13-Speed

$84.00

Built for

SRAM XPLR
gravel

Key specs

Speeds

This pairs well with

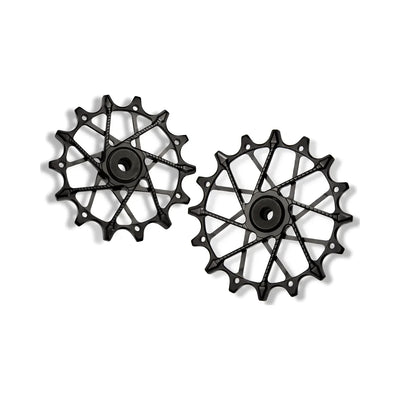

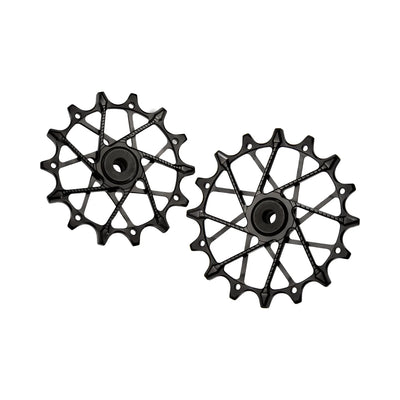

Garbaruk Rear Derailleur Pulleys for SRAM XPLR 13-SpeedRear derailleur pulleys

You may also need

Overview

This Garbaruk Rear Derailleur Cage replaces the stock cage on a SRAM XPLR 13-speed derailleur. It is machined from 7075-T651 aluminum, weighs 48g, and is color anodized, available in eight colors. Garbaruk lists it as required on the SRAM RED XPLR derailleur for a 10-52T cassette and optional on the Force XPLR and Rival XPLR derailleurs. Hammer & Howl recommends it for all three.

Why we love it

We love Garbaruk cages because they enable riders to upsize their largest cog up to 52T, they are precisely machined to specification for a swath of rear derailleurs, and every one comes color anodized in eight beautiful colors.

Why it makes the cut. Hammer & Howl only carries parts we believe are among the best in the business. Garbaruk cages are a great way to enable substantial range extension.

Specifications

Number of speeds: 13-speed
Drivetrain: SRAM XPLR
Fits derailleurs: SRAM RED XPLR AXS (RD-RED-1E-E1); SRAM Force XPLR AXS (RD-FRC-1E-E1); SRAM Rival XPLR AXS (RD-RIV-1E-E1)
Largest cassette capacity: Up to 52T
Weight: 48g
Material: 7075-T651 Aluminum Alloy
Finish: Color anodized (8 colors)
Recommended pulleys: Garbaruk Rear Derailleur Pulleys for SRAM XPLR 13-Speed (14T and 16T, sold separately; the derailleur's stock pulleys also work)

Warranty

Garbaruk publishes its written warranty, including what it covers and what it excludes, at garbaruk.com/warranty-returns. We will send you a free copy of that warranty on request. Email support@hammerandhowl.com or call (206) 420-9548.

What's included

One Garbaruk rear derailleur cage in the color you select

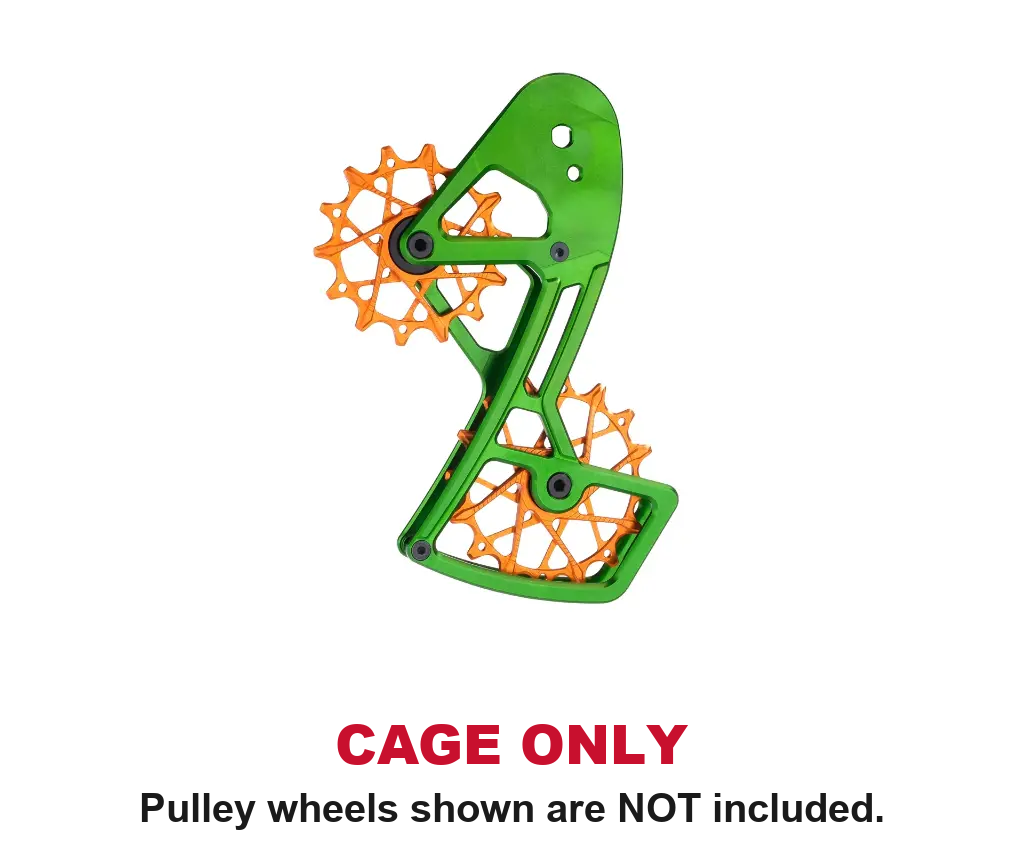

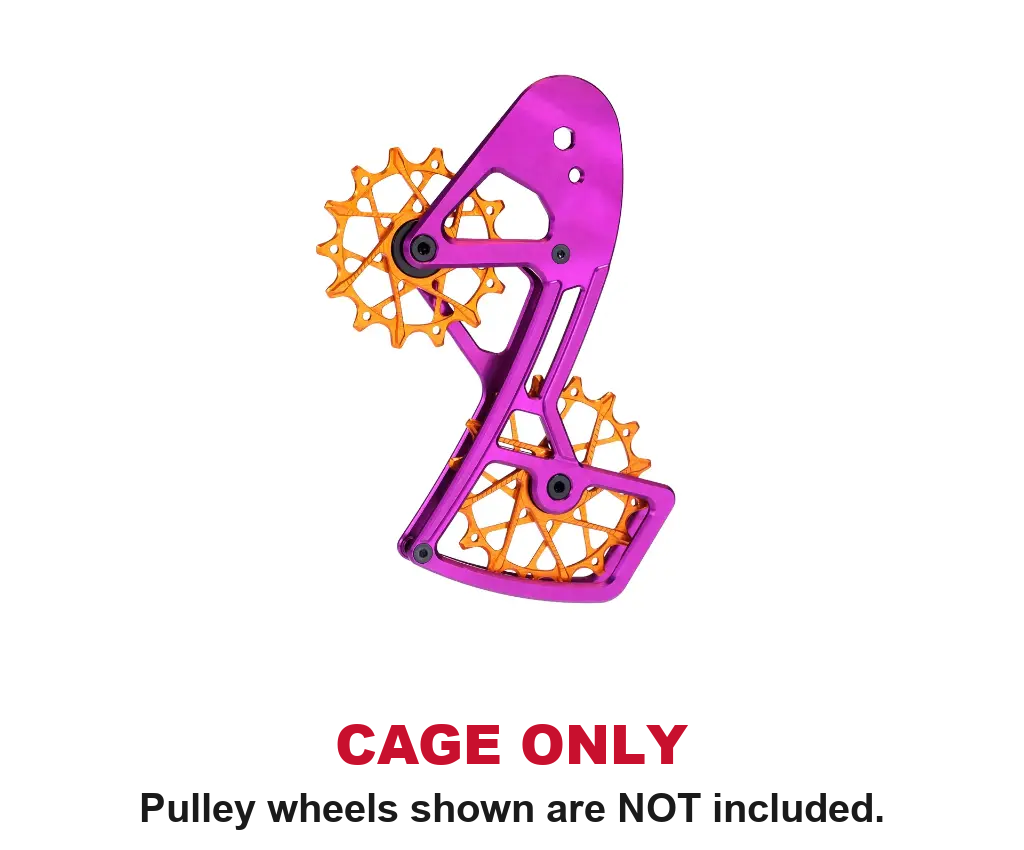

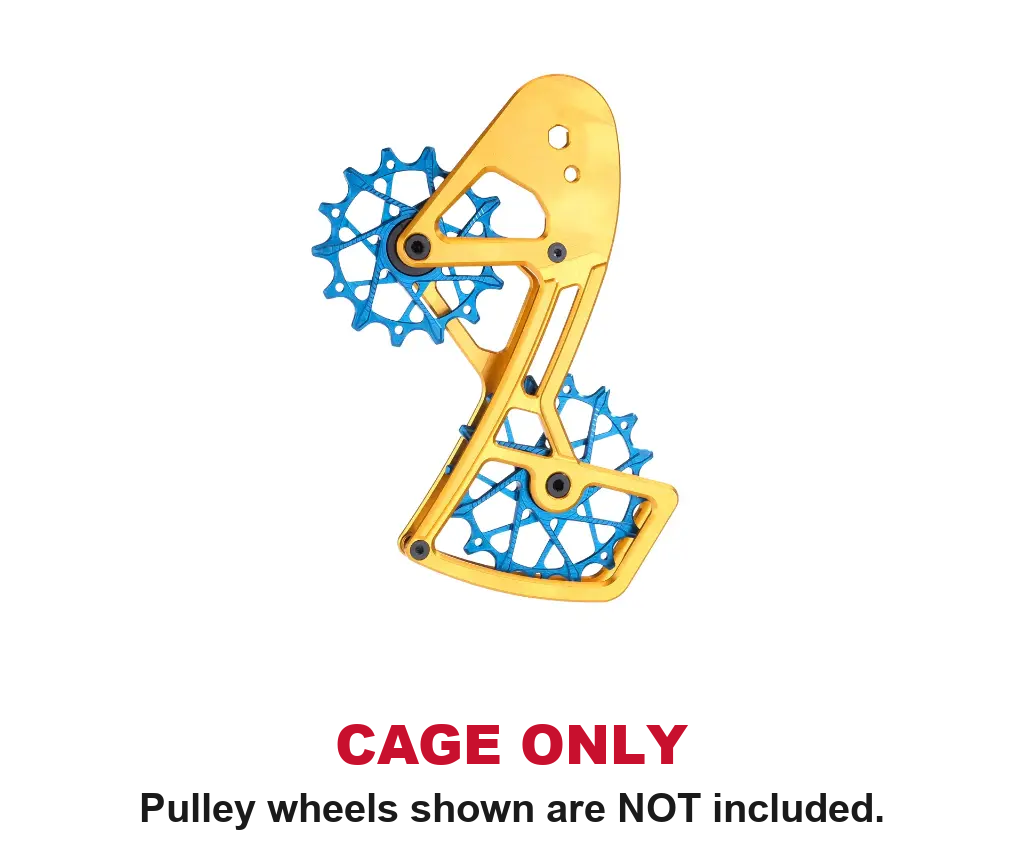

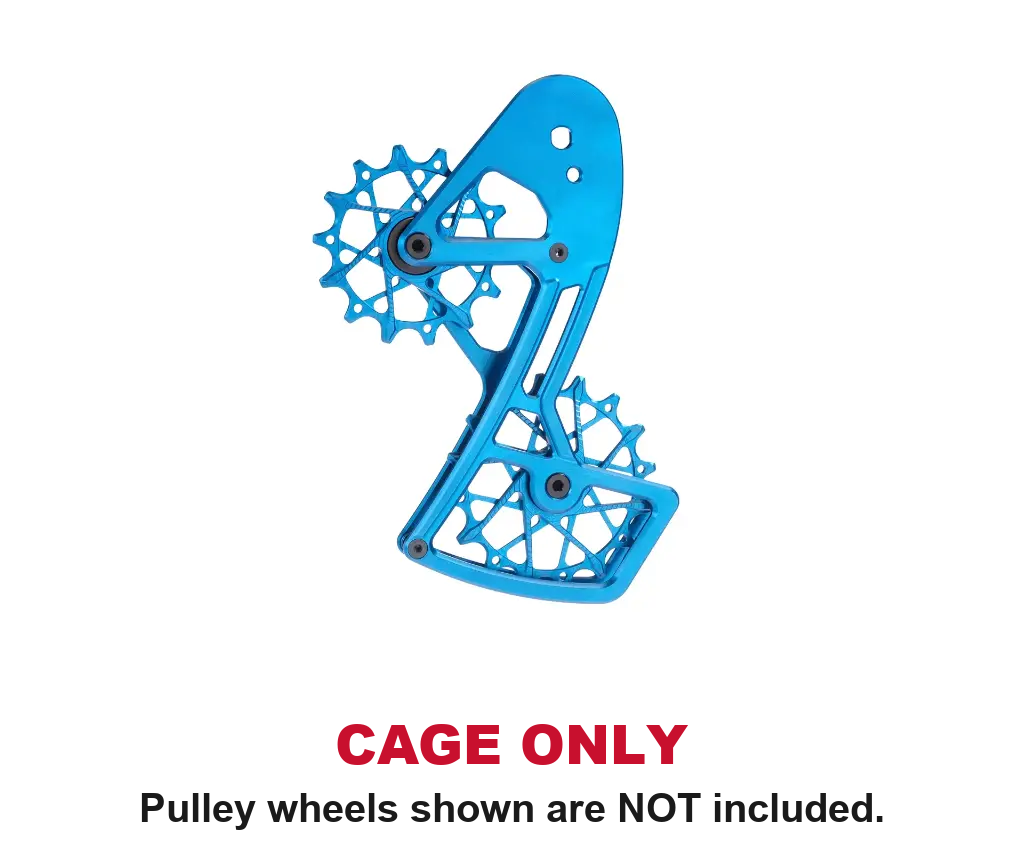

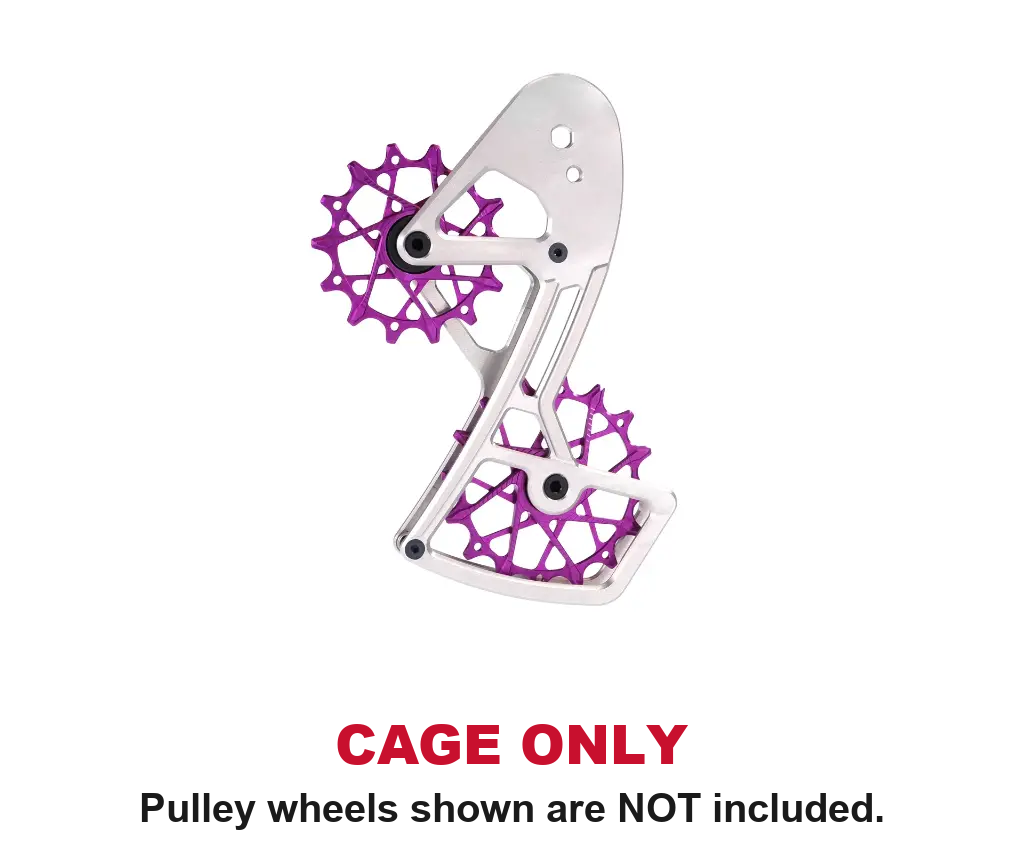

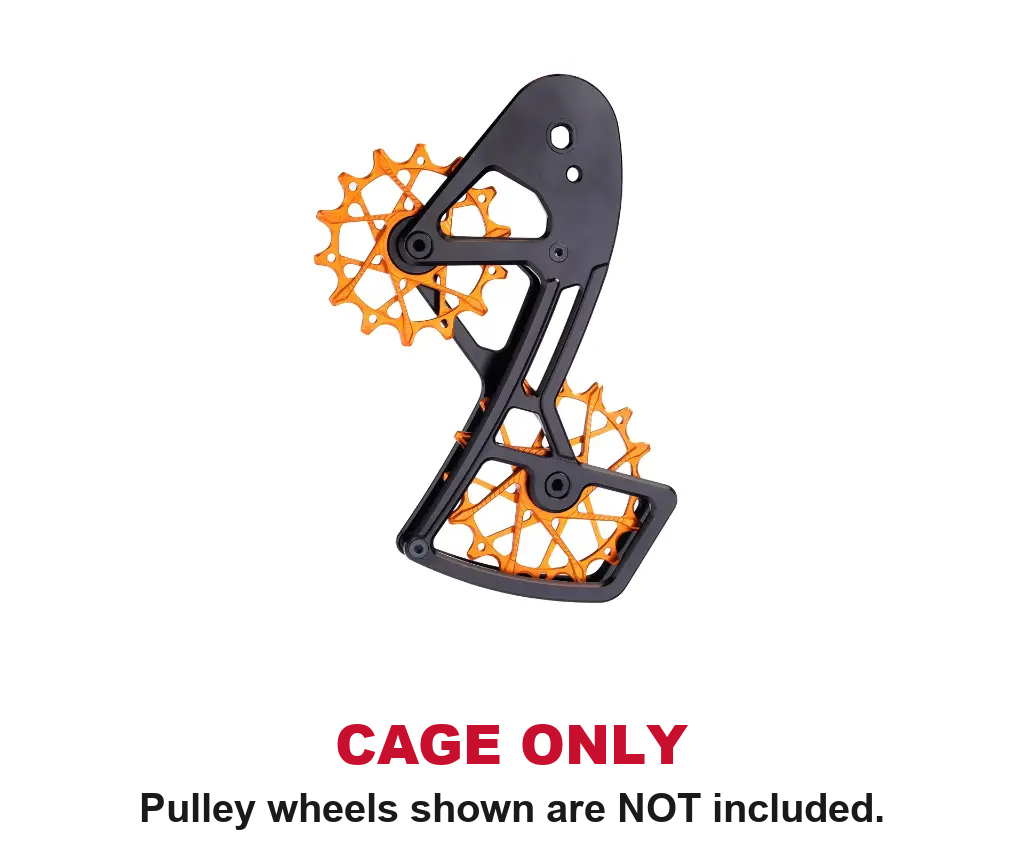

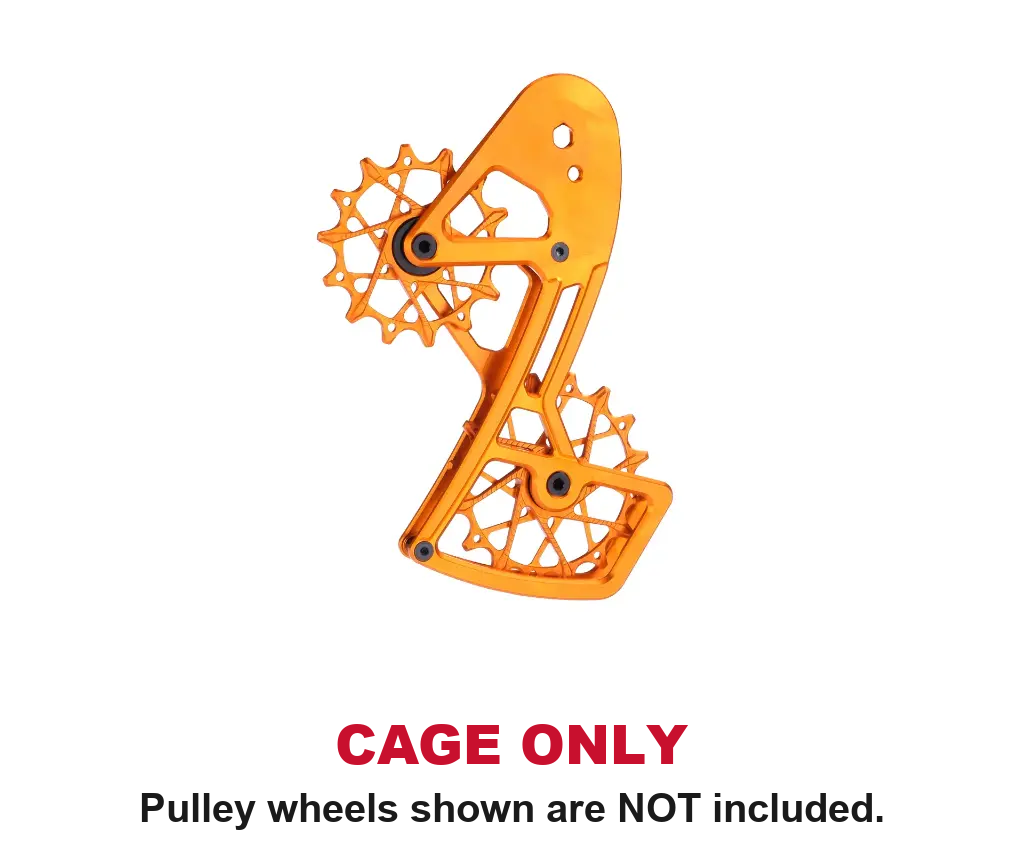

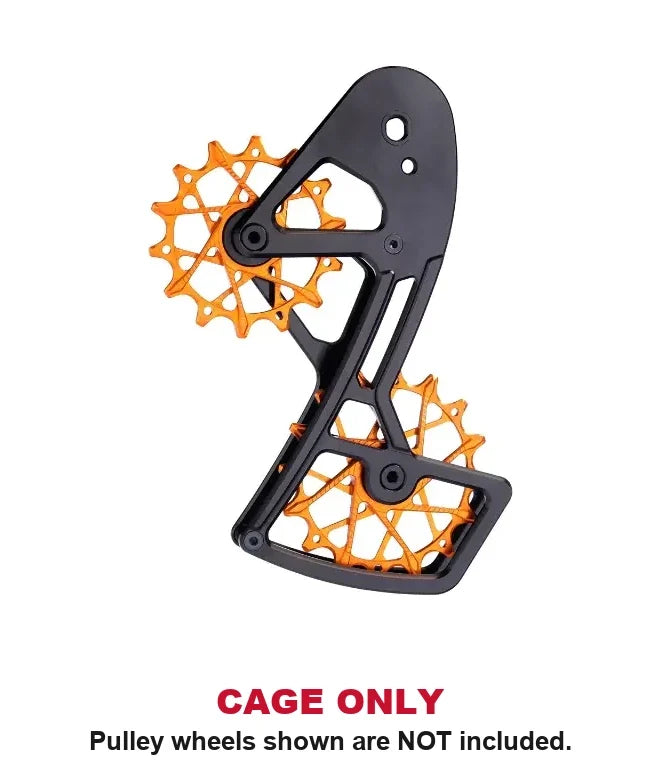

Not included: Pulley wheels. The pulleys shown in the product photos are sold separately. The cage ships on its own. You can reuse your derailleur's stock pulleys, or add the Garbaruk Rear Derailleur Pulleys for SRAM XPLR 13-Speed.

Will it fit your bike?

Compatible with

SRAM RED XPLR AXS 13-speed derailleur (RD-RED-1E-E1)
SRAM Force XPLR AXS 13-speed derailleur (RD-FRC-1E-E1)
SRAM Rival XPLR AXS 13-speed derailleur (RD-RIV-1E-E1)

Not compatible with

Any derailleur not listed above (SRAM XPLR 12-speed, SRAM Eagle, SRAM AXS road and eTap, and Shimano)

SRAM's official maximum for these derailleurs is a 46-tooth cog with the stock cage. Garbaruk lists this cage as required on the RED XPLR derailleur for the 10-52T Garbaruk 13-Speed Gen 2.0 XPLR Cassette for SRAM XD/XDR and optional on the Force XPLR and Rival XPLR derailleurs. Using the stock cage and pulleys on the Force XPLR or Rival XPLR derailleur instead requires installing a pulley bearing cover and removing the cage's plastic cover. The pulley bearing cover is included with the cassette, not with this cage. Results with that setup have been mixed. Hammer & Howl recommends this cage on all three derailleurs to ensure compatibility and full 10-52T capacity.

Questions

What would I need this cage for?

To use Garbaruk's widest XPLR cassette, for an easier climbing gear. Your stock SRAM XPLR cage tops out at a 46-tooth cog, so this cage lets a SRAM XPLR derailleur use the 10-52T Garbaruk 13-Speed Gen 2.0 XPLR Cassette for SRAM XD/XDR, sold separately. It is machined from 7075-T651 aluminum and color anodized in eight colors.

Can I use this cage with a smaller cassette too?

Yes. The cage supports cassettes up to a 52-tooth cog, so you can keep it on and use a smaller cassette too, for example when you swap wheels. Have your mechanic set the chain length for the largest cassette you plan to use. If you are pairing two very different cassettes, see the Will it fit section or contact Hammer & Howl to confirm before ordering.

Does this cage need new pulley wheels?

No. It works with your derailleur's original pulley wheels and pulley bolts, so there is no need to buy new pulleys. If you would rather change them, the Garbaruk Rear Derailleur Pulleys for SRAM XPLR 13-Speed are an option.
