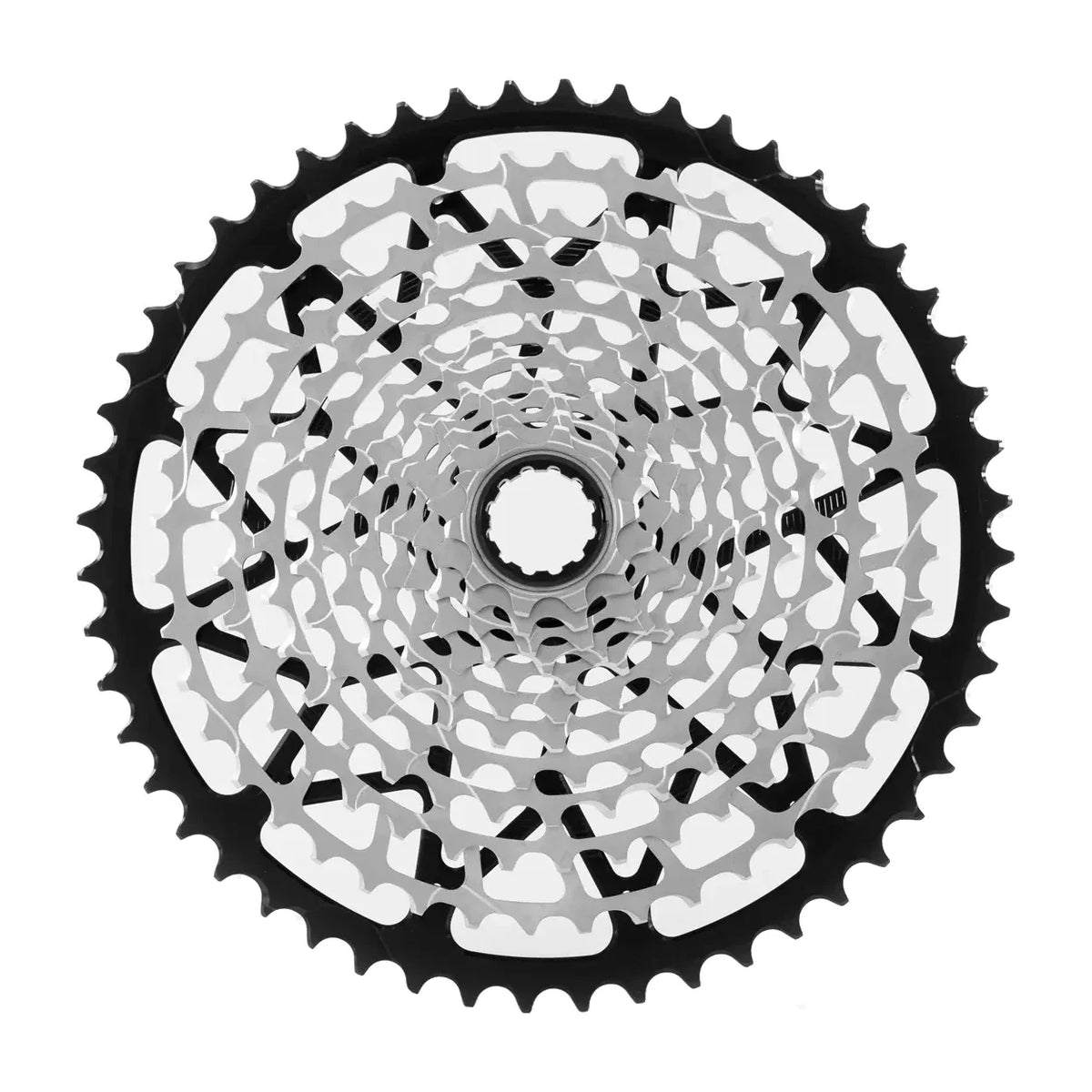

Garbaruk12-Speed Gen 2.0 Gravel Cassettefor SRAM XD/XDR
- SRAM Road
- SRAM XPLR
- gravel
- Speeds
- Weight
- Freehub
This pairs well with

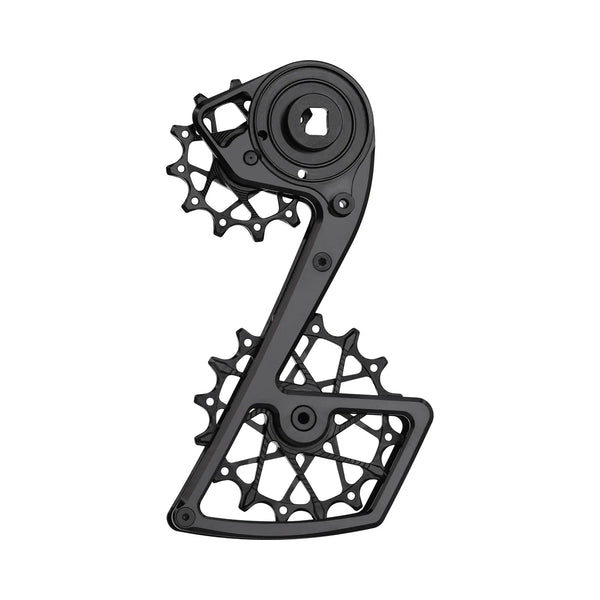

Garbaruk Rear Derailleur Cage + Pulleys Kit for SRAM AXS 12-SpeedCage and pulleys kitYou may also need
MSPEEDWAX Hot-Melt Chain WaxChain careOverview
Why we love it
We love Garbaruk cassettes because they strike a great balance between light weight, durability, beauty, and price.
- 01The CNC machined chromoly steel cogs provide the durability of steel while being lighter than stamped cogs.
- 02The color anodized 7075-T651 aluminum alloy big cog reduces weight and adds a gorgeous luster to the drivetrain.
- 03The range is wide. Whether you opt for the 10-48 or the 10-50, Garbaruk's famed extended range enables riders to tackle a wider variety of terrain with comfort.
Specifications
| Cog range | Cog sequence | Weight |
|---|---|---|
| 10-48T | 10, 12, 14, 16, 18, 21, 24, 28, 32, 36, 42, 48 | 330 g |
| 10-50T | 10, 12, 14, 16, 18, 21, 24, 28, 32, 36, 42, 50 | 335 g |
- Number of speeds
- 12-speed
- Drivetrain
- SRAM AXS road, eTap, and XPLR 12-speed gravel
- Freehub
- SRAM XD or XDR (1.8 mm spacer included for XDR)
- Material
- Chromoly steel cogs with a 7075-T651 color anodized aluminum largest cog
- Finish
- Color anodized, in a choice of eight colors
- Made with
- CNC milling
- Generation
- Gen 2.0
Warranty
Garbaruk publishes its written warranty, including what it covers and what it excludes, at garbaruk.com/warranty-returns. We will send you a free copy of that warranty on request. Email support@hammerandhowl.com or call (206) 420-9548.
What's included
- One Garbaruk 12-Speed Gen 2.0 Gravel Cassette (in the cog range and color you select)
- One 1.8 mm Garbaruk cassette spacer (required to fit a SRAM XDR freehub, not needed on a SRAM XD freehub)
Will it fit your bike?
Compatible with
- SRAM XD and SRAM XDR freehubs
- SRAM 12-speed XPLR AXS gravel derailleurs: Apex XPLR (RD-APX-1E-D1), Rival XPLR (RD-RIV1-E-D1), Force XPLR (RD-FRC1-E-D1), and RED XPLR (RD-RED1-E-D1)
- SRAM 12-speed eTap AXS road derailleurs: RED (RD-RED-E-D1), Force (RD-FRC-E-D1), and Rival (RD-RIV-E-D1)
Not compatible with
- Shimano HyperGlide (HG) and Micro Spline freehubs
- SRAM Eagle Transmission (T-Type) and any 13-speed drivetrain
Confirm before ordering
Ships to fit a SRAM XD freehub and includes the 1.8 mm spacer that fits it to a SRAM XDR freehub.
On a SRAM 12-speed XPLR AXS gravel derailleur, the 10-48T fits with no other parts and the 10-50T needs a Garbaruk cage and pulleys kit.
On a SRAM 12-speed eTap AXS road derailleur, both sizes need a Garbaruk cage and pulleys kit. The stock road derailleur is rated to a 36-tooth largest cog.
Questions
SRAM rates my XPLR derailleur to a 44-tooth cog. Will the 10-48T work?
Yes. The 10-48T fits a SRAM 12-speed XPLR AXS derailleur with no other parts, which is above SRAM's published 44-tooth maximum for those derailleurs. The 10-50T is the size that needs a Garbaruk cage and pulleys kit.
How do I tell a SRAM XD freehub from an XDR freehub?
An XDR freehub is slightly longer than an XD freehub, and the included 1.8 mm spacer takes up the difference. Fit the cassette directly to an XD freehub, or add the spacer to fit an XDR freehub.
Should I choose this 12-speed cassette or the 13-speed XPLR cassette?
This 12-speed cassette tops out at 10-50T and fits SRAM 12-speed AXS road, eTap, and XPLR gravel derailleurs. If you ride a SRAM RED, Force, or Rival XPLR 13-speed derailleur, choose the Garbaruk 13-Speed Gen 2.0 XPLR Cassette instead.
