SRAMXX1 Eagle Chain

$100.00
Built for
  • SRAM Eagle
  • mtb
Key specs
Speeds
12-speed
Color

Does it fit my bike?

In stock Ships from Seattle, WA

  • Free USPS Ground Advantage on orders of $50 or more.
  • $5 flat rate USPS Ground Advantage on orders under $50.
  • Expedited shipping is available for $10 via USPS Priority Mail.

Specifications

Number of speeds
12-speed
Drivetrain
SRAM Eagle 12-speed (non-Transmission)
Chain type
Standard roller chain, hollow-pin
Links
126 links
Connector
SRAM Eagle PowerLock Connector, single-use, included
Finish
Chrome-plated inner links, with outer links plated in nickel on Copper, Gold and Black, and in chrome on Rainbow. A colored PVD coating goes over all of it, in Copper, Gold, Black, or a Rainbow oil-slick.
E-bike approved
Yes
SRAM model
CN-EAGL-XX1
Manufacturer part number
  • Gold 00.2518.024.020
  • Black 00.2518.024.021
  • Rainbow 00.2518.039.010
  • Copper 00.2518.043.010

Warranty

SRAM publishes its written warranty, including what it covers and what it excludes, at sram.com/en/service/warranty. We will send you a free copy of that warranty on request. Email support@hammerandhowl.com or call (206) 420-9548.

What's included

  • One SRAM XX1 Eagle Chain (126 links), in the color you select
  • One SRAM PowerLock connector, the matching quick link for this chain

Not included: A chain tool or master-link pliers. You size the chain to your drivetrain with a chain tool, then join it with the SRAM PowerLock in the box, with the arrow on the PowerLock pointing in the direction the chain travels. The PowerLock closes by hand and locks in place with a firm pedal stroke while you hold the rear brake, until it clicks. Removing the chain later needs master-link pliers. The PowerLock is single-use, so use a fresh one each time the chain is joined. Many home mechanics do this job; if you would rather not, any bike shop can install it for you.

Will it fit your bike?

Compatible with

  • SRAM Eagle 12-speed drivetrains that use a rear derailleur on a hanger, including:
    • NX Eagle
    • GX Eagle
    • X01 Eagle
    • XX1 Eagle
    • SX Eagle
    • Eagle S100
    • Eagle S200
    • Eagle S500
    • SRAM Eagle AXS groups that are not Transmission
  • Any SRAM Eagle 12-speed tier (a chain from one tier works on another; the higher tiers add hollow pins and harder finishes)

Not compatible with

  • SRAM Eagle Transmission (T-Type) drivetrains, the direct-mount, hangerless system, which use a Flattop Eagle Transmission chain, a different chain
  • SRAM 12-speed Flattop road drivetrains:
    • RED eTap AXS
    • Force eTap AXS
    • Rival eTap AXS
    • Apex eTap AXS
  • 10-speed, 11-speed, and non-SRAM drivetrains

Confirm before ordering

This is a SRAM Eagle 12-speed chain for a hanger-mounted Eagle drivetrain. For an Eagle Transmission (T-Type) bike, use a Flattop Eagle Transmission chain instead. If you are not sure which you have, confirm with your bike mechanic or Hammer & Howl before ordering.

SRAM's Eagle is the 12-speed mountain-bike drivetrain that uses a rear derailleur on a hanger, and this is the standard Eagle chain for it. It is a standard roller chain with conventional plates, not a Flattop chain. Any SRAM Eagle 12-speed chain works across the Eagle tiers, so match the chain to a hanger-mounted Eagle drivetrain. Watch the names:

  • X01 Eagle is a different part from X0 Transmission
  • XX1 Eagle is a different part from XX Transmission
  • GX Eagle is a different drivetrain from GX Eagle Transmission
  • Eagle S100 is different from S1000 Eagle Transmission
  • Eagle S200 is different from S1000 Eagle Transmission
  • Eagle S500 is different from S1000 Eagle Transmission

This pairs well with

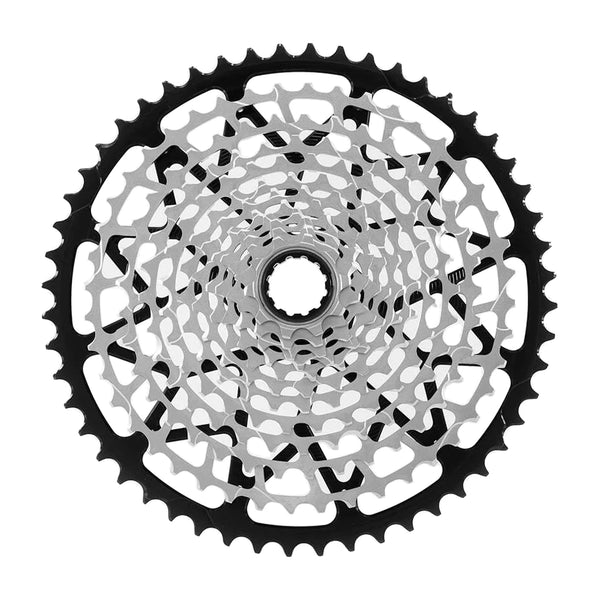

Garbaruk 12-Speed Cassette for SRAM XDCassette
