Why we love it

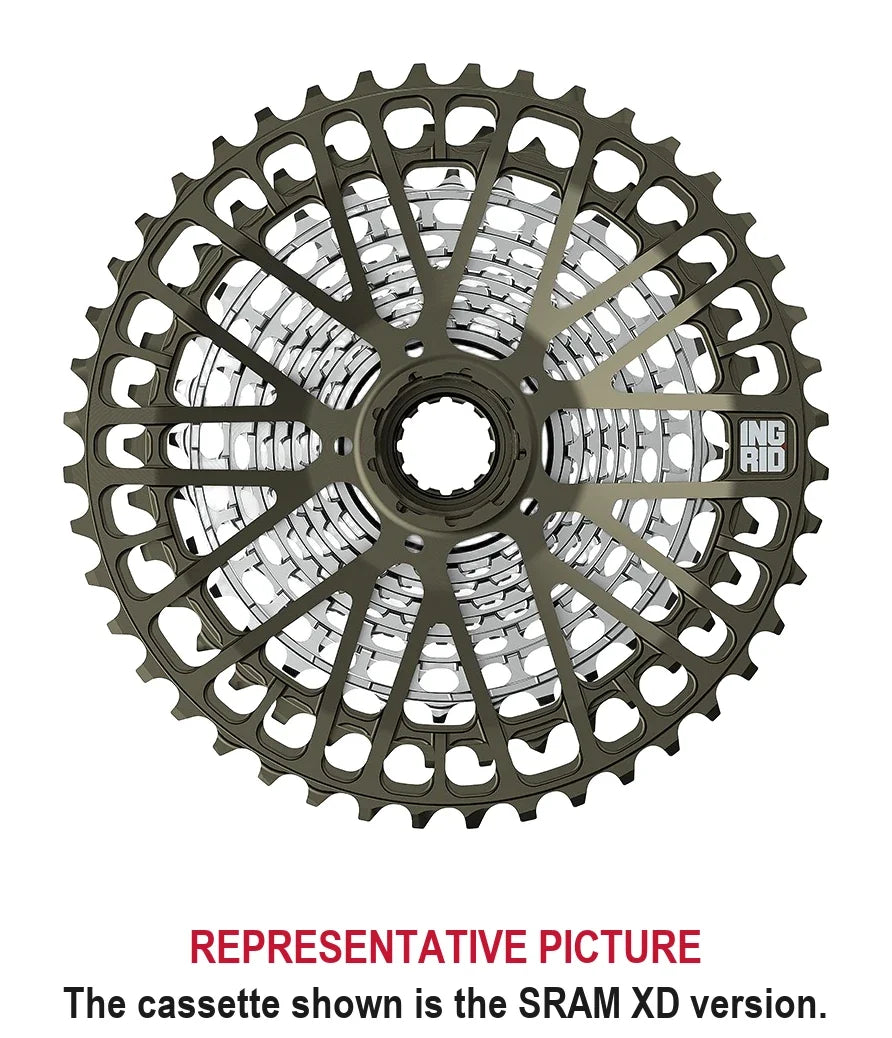

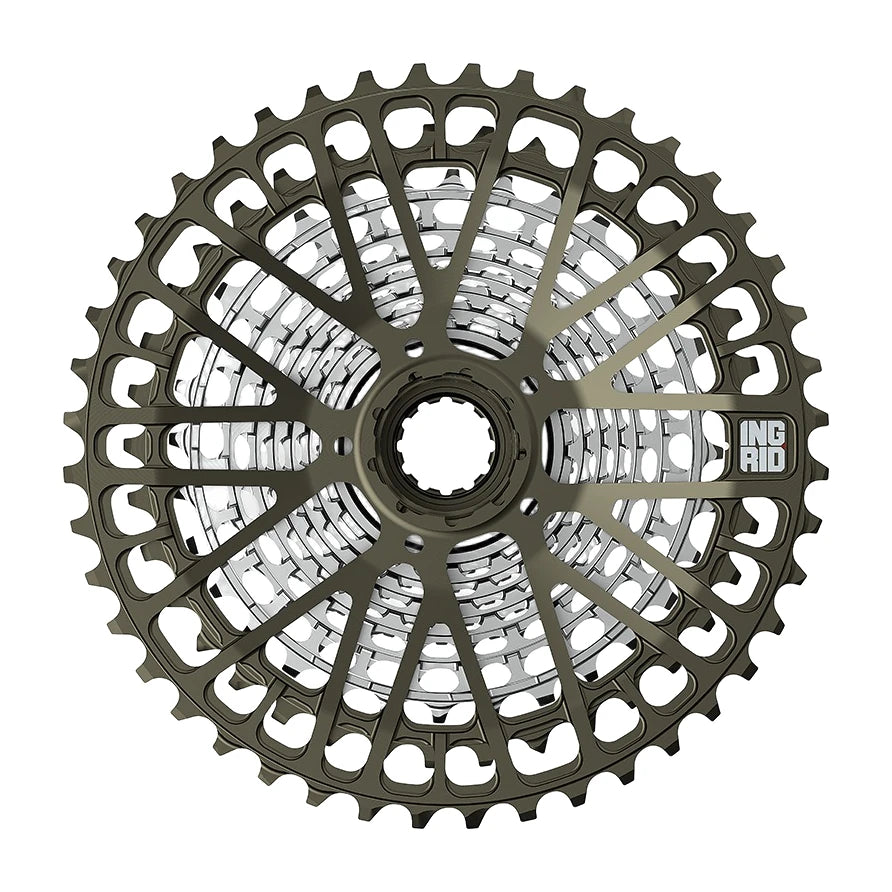

We love that the Ingrid cassette is machined from two metals and built to be renewed, not thrown away.
- 01The smaller cogs are heat-treated AISI 9840 steel with a nickel-phosphorus plating, for durability and precise shifting.
- 02The largest cogs are 7075-T6 aluminum with a hard-anodized surface, which cuts weight while resisting wear.
- 03Because it is machined in two parts, each part is available separately as a spare, so you can renew the cassette instead of replacing it.
Specifications
- Number of speeds
- 12-speed
- Drivetrain
- 12-speed single-chainring (Ingrid RD1, Shimano MTB)
- Freehub
- Shimano HG (Hyperglide) and HG-Road
- Material
- AISI 9840 steel cogs; 7075-T6 aluminum largest cogs
- Surface
- Nickel-phosphorus plating (steel); hard-anodized (aluminum)
- Finish
- Silver natural-metal steel cogs; dark bronze hard-anodized aluminum cogs
- Chain
- 12-speed, including SRAM 12-speed (Flattop included) and other compatible 12-speed chains
- Made with
- CNC machining
- Weight
- 318 g
- Made in
- Italy
What's included
- One Ingrid 12-Speed Cassette for Shimano HG (11-44T)
Will it fit your bike?
Compatible with
- Shimano HG (Hyperglide) and HG-Road freehubs
- 12-speed single-chainring drivetrains, including: The Ingrid RD1 MK2 Rear Derailleur
- 12-speed single-chainring drivetrains, including: Shimano MTB, with a long (GS or SGS) cage
- 12-speed chains, including SRAM 12-speed (Flattop included) and other compatible 12-speed chains
Not compatible with
- SRAM XD drivers (choose the Ingrid 12-Speed Cassette for SRAM XD instead)
- Shimano Micro Spline freehubs (this cassette is made for a Shimano HG freehub only)
- 10-speed and 11-speed drivetrains (this is a 12-speed cassette)
- Derailleurs without the cage capacity to reach a 44-tooth cog
Confirm before ordering
This cassette fits a Shimano-style HG (Hyperglide) freehub, the splined freehub used on most wheels before Micro Spline. Its 11-44T cogset pairs with the Ingrid RD1 MK2 Rear Derailleur and with Shimano MTB (GS or SGS) derailleurs that can reach a 44-tooth cog. It works with 12-speed chains, including SRAM 12-speed (Flattop included) and other compatible 12-speed chains. For a SRAM XD driver, choose the Ingrid 12-Speed Cassette for SRAM XD instead.
Questions
How durable are the aluminum cogs?
Aluminum is less durable than steel, but it weighs less. Ingrid uses it only for the top two (largest) cogs, where the chain load is spread across the most teeth and each tooth carries less of it. Those two cogs are 7075-T6 aluminum, hardened with a hard-anodizing process for a tough, wear-resistant surface. The smaller, harder-working cogs are heat-treated AISI 9840 steel with a nickel-phosphorus plating. Because the cassette is machined in two parts, the steel section and the aluminum section are each available separately as spare parts. If one part wears, you can renew just that part rather than replace the whole cassette. As with any cassette, keep the chain clean and lubricated and replace it before it wears, since a worn chain wears the cogs faster.
How do I know if I have a Shimano HG freehub?
The easiest check is the smallest cog your current cassette can take. An 11-tooth or larger smallest cog means the HG (Hyperglide) freehub, which this cassette needs. A 10-tooth smallest cog means the newer Micro Spline or a SRAM XD driver, which it does not fit. Your wheel or hub maker's spec sheet lists the freehub type too.
Which derailleur works with this cassette?
It is built for a 12-speed single-chainring drivetrain. It pairs directly with the Ingrid RD1 MK2 Rear Derailleur, on the cage length that matches your cog range. It also works with Shimano MTB (GS or SGS) derailleurs that can reach its largest cog. See the Will it fit section to match your derailleur.
Can I use a long cage derailleur with this cassette?
Yes. This cassette is 11-44T, well within a long cage's capacity, so a long-cage derailleur works with it. That includes the long-cage Ingrid RD1 MK2 Rear Derailleur that Hammer & Howl stocks. A short cage holds the chain a little more taut, so it runs quieter, shifts a touch crisper, and sits slightly higher for more ground clearance. A long cage is fully functional with a 44T cassette, and it lets you move to a larger cassette, up to 52T, later without changing the derailleur. The long cage does carry a little more chain slack on the 44T than on the 52T.
What if I have a SRAM XD driver instead?
Choose the Ingrid 12-Speed Cassette for SRAM XD, the same cassette built for a SRAM XD driver. It is the XD version of this 11-44T cassette, and it adds two larger cog ranges. Match the version to your freehub: HG here, SRAM XD there.
