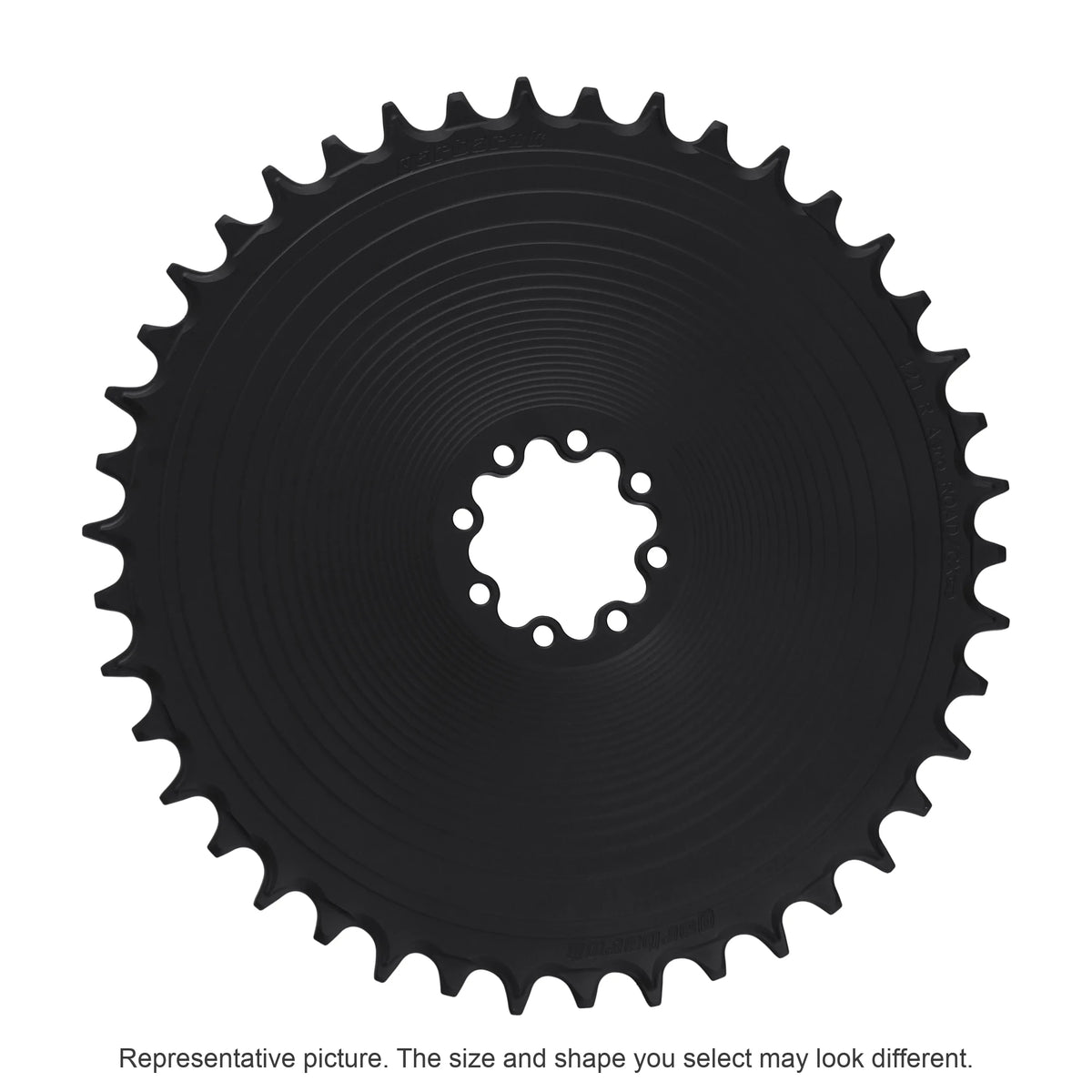

Garbaruk DM Road AERO Chainring for SRAM 8-Bolt in Matte Black, hero view.

Click anywhere or press Esc to close.

GarbarukDM Road AERO Chainringfor SRAM 8-Bolt

$119.00
Built for
  • road
Key specs
Chainring shape
Round
Color Matte Black
Chainring size 40T

Does it fit my bike?

In stock Ships from Seattle, WA

  • Free USPS Ground Advantage on orders of $50 or more.
  • $5 flat rate USPS Ground Advantage on orders under $50.
  • Expedited shipping is available for $10 via USPS Priority Mail.

Overview

This Garbaruk Direct Mount Chainring installs on a SRAM 8-bolt road or gravel crank for a single-chainring (1x) drivetrain. It is machined from 7075-T651 aluminum, color anodized, available in eight colors. Its chamfered edges and wide mud gap keep the ring from getting muddy, while its variable teeth thickness prevents chain dropping. Garbaruk's increased tooth height improves chain retention when the bike is jolted. Garbaruk varies the ring's offset by size, which it calls variable chainline technology, so the chain lines up well with a wide-range cassette. It fits SRAM AXS and XPLR cranks, including RED, Force, Rival, and Apex.

Why we love it

We love Garbaruk chainrings because they hold the chain and shed mud well.

  • 01The solid aero face presents a smooth, gap-free surface to the wind, designed to reduce drag where a standard ring has open cutouts.
  • 02The tall, variable-thickness teeth grip the chain, so it stays put over rough, jolting ground.
  • 03Chamfered edges and a wide mud gap keep the ring from packing with mud, so it runs clean, or at least as clean as can be hoped for in whatever terrain you're tackling.
Why it makes the cut. Hammer & Howl only carries parts we believe are among the best in the business. Garbaruk chainrings are a well-made way to keep your chain where it belongs, running smoothly.

Specifications

Mount
SRAM 8-bolt direct mount
Shape
Round
Chain
Any 9, 10, or 11-speed chain; SRAM Eagle and Eagle Transmission 12-speed; KMC 12-speed; Shimano Hyperglide+ 12-speed; SRAM AXS Flattop 13-speed (such as the SRAM RED E1 Flattop Road Chain)
Material
7075-T651 Aluminum Alloy
Finish
Color anodized (8 colors)
Setup
1x drivetrains only

Warranty

Garbaruk publishes its written warranty, including what it covers and what it excludes, at garbaruk.com/warranty-returns. We will send you a free copy of that warranty on request. Email support@hammerandhowl.com or call (206) 420-9548.

What's included

  • One Garbaruk direct-mount AERO chainring in the size and color you select

Not included: Mounting bolts. The eight direct-mount bolts are not included. Reuse the bolts from your SRAM 8-bolt crank, or use a separate 8-bolt chainring bolt set.

Will it fit your bike?

Compatible with

  • SRAM 8-bolt direct mount road and gravel cranks: SRAM RED XPLR
  • SRAM 8-bolt direct mount road and gravel cranks: SRAM Force 1, Force 1 AXS, and Force 1 AXS Wide
  • SRAM 8-bolt direct mount road and gravel cranks: SRAM Force AXS, Force XPLR, and Force XPLR AXS
  • SRAM 8-bolt direct mount road and gravel cranks: SRAM Rival 1 AXS, Rival 1 AXS Wide, Rival XPLR, and Rival XPLR AXS
  • SRAM 8-bolt direct mount road and gravel cranks: SRAM Apex 1 Wide and Apex AXS
  • All 9, 10, and 11-speed chains
  • SRAM Eagle and Eagle Transmission (T-Type) 12-speed chains
  • KMC 12-speed chains and Shimano Hyperglide+ 12-speed chains
  • SRAM AXS Flattop 13-speed chains, such as the SRAM RED chain (CN-RED-E1)

Not compatible with

  • Cranks without a SRAM 8-bolt direct mount interface
  • Two-chainring (2x) drivetrains
  • Any chain not listed above

Confirm before ordering

If you are not sure which shape or size your drivetrain needs, confirm with your bike mechanic or contact Hammer & Howl before ordering.

This chainring is for single-chainring (1x) drivetrains. Choose Round or Oval and your chainring size. Garbaruk varies the ring's offset by size, which it calls variable chainline technology, so the chain lines up well with a wide-range cassette:

Offsets are published for the sizes shown; sizes outside them have no published offset.

Questions

Will this chainring fit my crank?

Yes, if it is a SRAM 8-bolt direct mount road or gravel crank. That includes SRAM RED XPLR, Force, Rival, and Apex 8-bolt cranks. See the Specifications and Will it fit sections for the full list before ordering.

Why does the offset change with the ring size?

Garbaruk varies the offset by ring size, which it calls variable chainline technology, so the chain lines up well with your cassette. The offset is built into each size; there is nothing to adjust yourself.

What does the aero design do?

Its face is solid and closed instead of the open cutouts of a standard ring, a shape designed to reduce drag as it turns.

Are the mounting bolts included?

No. This chainring does not include mounting bolts. You reuse the eight direct-mount bolts that came with your SRAM 8-bolt crank, or use a separate 8-bolt chainring bolt set.
