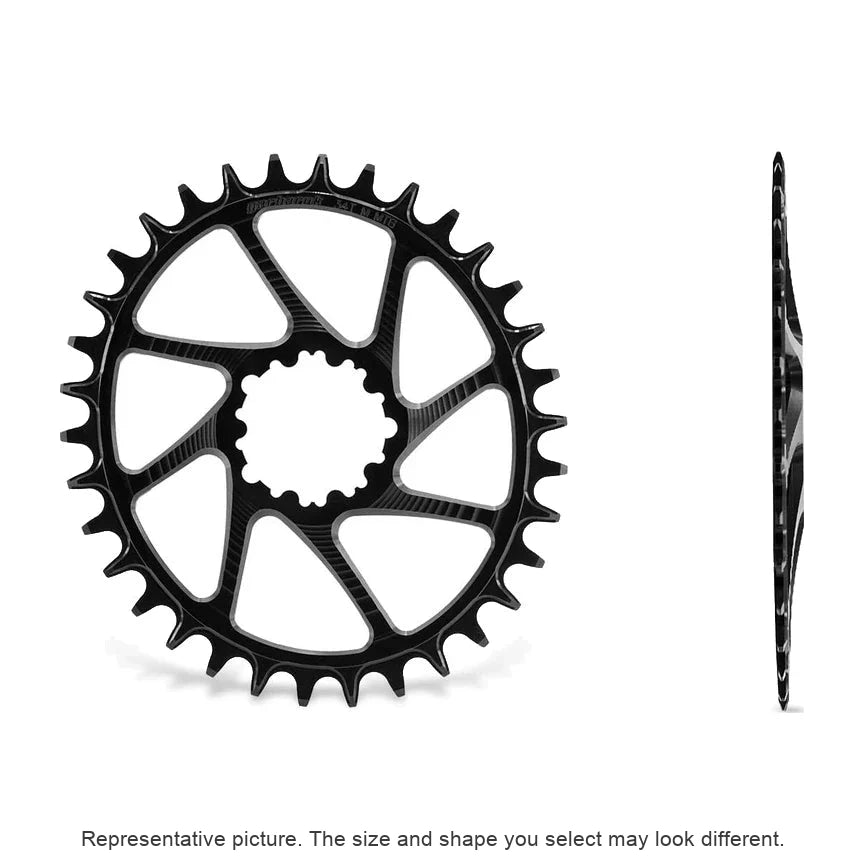

GarbarukDM MTB Chainringfor SRAM 3-Bolt

$80.00
Built for
  • mtb
Key specs
Chainring shape
Round
Color Black
Chainring size 26T

Does it fit my bike?

Sold out Ships from Seattle, WA

  • Free USPS Ground Advantage on orders of $50 or more.
  • $5 flat rate USPS Ground Advantage on orders under $50.
  • Expedited shipping is available for $10 via USPS Priority Mail.

Overview

This Garbaruk Direct Mount Chainring installs on a SRAM 3-bolt mountain bike crank for a single-chainring (1x) drivetrain. It is machined from 7075-T651 aluminum, color anodized, available in eight colors. Its chamfered edges and wide mud gap keep the ring from getting muddy, while its variable teeth thickness prevents chain dropping. Garbaruk's increased tooth height improves chain retention when the bike is jolted. Garbaruk varies the ring's offset by size, which it calls variable chainline technology, so the chain lines up well with a wide-range cassette.

Why we love it

We love Garbaruk chainrings because they hold the chain and shed mud well.

  • 01The tall, variable-thickness teeth grip the chain, so it stays put over rough, jolting ground.
  • 02Chamfered edges and a wide mud gap keep the ring from packing with mud, so it runs clean and quiet, or at least as clean and quiet as can be hoped for in whatever terrain you're tackling.
  • 03The offset is tuned to each ring size, so the chain lines up better across a wide-range cassette and runs quieter in the big cogs.
Why it makes the cut. Hammer & Howl only carries parts we believe are among the best in the business. Garbaruk chainrings are a well-made way to keep your chain where it belongs, running smoothly.

Specifications

Mount
SRAM 3-bolt direct mount
Shape
Round
Offset
1.0mm (BB30/Superboost)
Chain
Any 9, 10, or 11-speed chain; SRAM Eagle and Eagle Transmission 12-speed (such as the SRAM GX Eagle Transmission Flattop Chain); KMC 12-speed; Shimano Hyperglide+ 12-speed
Material
7075-T651 Aluminum Alloy
Finish
Color anodized (8 colors)
Setup
1x drivetrains only

Warranty

Garbaruk publishes its written warranty, including what it covers and what it excludes, at garbaruk.com/warranty-returns. We will send you a free copy of that warranty on request. Email support@hammerandhowl.com or call (206) 420-9548.

What's included

  • One Garbaruk direct-mount MTB chainring in the size and color you select

Not included: Mounting bolts. The three direct-mount bolts are not included. Reuse the bolts from your 3-bolt crank.

Will it fit your bike?

Compatible with

  • SRAM 3-bolt direct mount cranks: SRAM X9, X1, NX, GX, X0, X01, and XX1
  • SRAM 3-bolt direct mount cranks: SRAM X01 Eagle and XX1 Eagle
  • SRAM 3-bolt direct mount cranks: Cane Creek eeWings Mountain
  • SRAM 3-bolt direct mount cranks: Praxis Works direct mount cranks
  • All 9, 10, and 11-speed chains
  • SRAM Eagle and Eagle Transmission (T-Type) 12-speed chains
  • KMC 12-speed chains and Shimano Hyperglide+ 12-speed chains

Not compatible with

  • Cranks without a SRAM 3-bolt direct mount interface
  • Two-chainring (2x) drivetrains
  • Any chain not listed above (including SRAM 12-speed road Flattop chains)

Confirm before ordering

If you are not sure which offset type your bike needs, confirm with your bike mechanic or contact Hammer & Howl before ordering.

This chainring is for single-chainring (1x) drivetrains. Choose the offset type for your crank and frame: Standard (non-Boost), Boost, or BB30/Superboost. Garbaruk varies the ring's offset by size, which it calls variable chainline technology, so the chain lines up well with a wide-range cassette:

Offsets are published for the sizes shown; sizes outside them have no published offset.

Questions

Which offset should I choose?

Choose the offset for your crank and frame: Standard for a non-Boost setup, Boost for a Boost setup, or BB30/Superboost for those cranks. If you are not sure, check your frame and crank specification, or the Will it fit section, before ordering.

Why does the offset change with the ring size?

Garbaruk varies the offset by ring size, which it calls variable chainline technology, so the chain lines up well with your cassette. You choose the size and offset that match your setup; there is nothing to adjust yourself.

Will this chainring fit my crank?

Yes, if it is a SRAM 3-bolt direct mount crank. That includes SRAM X9, X1, NX, GX, X0, X01, and XX1, SRAM Eagle, Cane Creek eeWings Mountain, and Praxis Works direct mount cranks. See the Specifications and Will it fit sections for the full list and to pick your offset before ordering.

Are the mounting bolts included?

No. This chainring does not include mounting bolts. You reuse the three direct-mount bolts that came with your 3-bolt crank.
