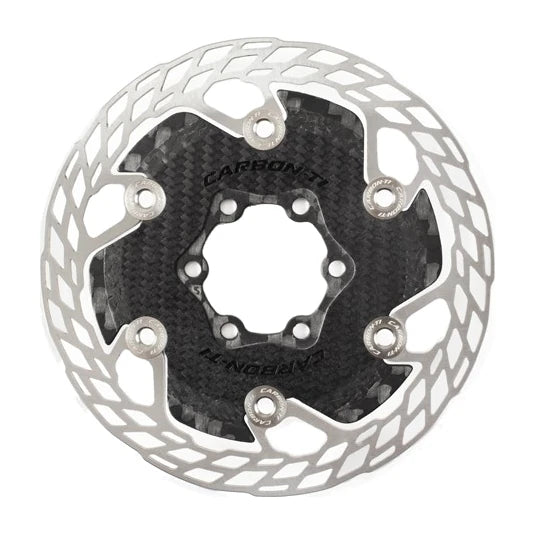

Carbon-TiX-Rotor Aero 6-Bolt
$240.00
Built for
- road
This pairs well with
Carbon-Ti X-Rotor Titanium Bolt KitRotor accessorySpecifications
| Rotor size | Weight |
|---|---|
| 140mm | 75 g |
| 160mm | 97 g |
- How to size it
- Measure the outside diameter of the rotor on your bike, or check your frame and fork specification
- Mount
- 6-bolt (International Standard)
- Body
- Aerodynamic carbon body, wind-tunnel shaped
- Braking surface
- Stainless steel, 1.8mm thick braking track, shared with the SteelCarbon 3
- Rivets and washers
- Grade 5 titanium rivets and washers
- Edges
- Rounded, CNC-machined (complies with UCI regulations)
- Brake pads
- Works with any disc brake pad
- Rotor bolts
- Not included
- Made in
- Italy
What's included
- One Carbon-Ti X-Rotor Aero 6-Bolt rotor
Will it fit your bike?
Compatible with
- Hubs with the 6-bolt disc mount, on road, time trial, and triathlon bikes
- Rotor sizes 140mm and 160mm, so you can match the size your bike is built for
Not compatible with
- Center Lock hubs on their own (add the Carbon-Ti X-Rotor Center Lock Adapter Kit, sold separately, or choose the Carbon-Ti X-Rotor Aero Center Lock)
- Campagnolo and Fulcrum wheels built for the AFS disc mount (choose the Carbon-Ti X-Rotor Aero X-AFS instead)
- A rotor size your brake calipers are not set up for, without the correct caliper adapter
Confirm before ordering
Two things decide fit: the mount and the size. Your hubs need the 6-bolt disc mount, and the rotor size you select must match what your frame, fork, and brake calipers are built for.
Moving to a bigger or smaller rotor can need a different caliper mount adapter.
To fit this 6-bolt rotor to a Center Lock hub instead, add the Carbon-Ti X-Rotor Center Lock Adapter Kit, sold separately. If you are buying for a Center Lock hub, the Carbon-Ti X-Rotor Aero Center Lock is the simpler choice.
