Carbon-TiX-Lock EVO 12x1.5 X-E-Thru (166 mm) Rear Thru-Axle

$74.00
Built for
  • road
  • gravel
Key specs
Color
Matte Black

Does it fit my bike?

Sold out Ships from Seattle, WA

  • Free USPS Ground Advantage on orders of $50 or more.
  • $5 flat rate USPS Ground Advantage on orders under $50.
  • Expedited shipping is available for $10 via USPS Priority Mail.

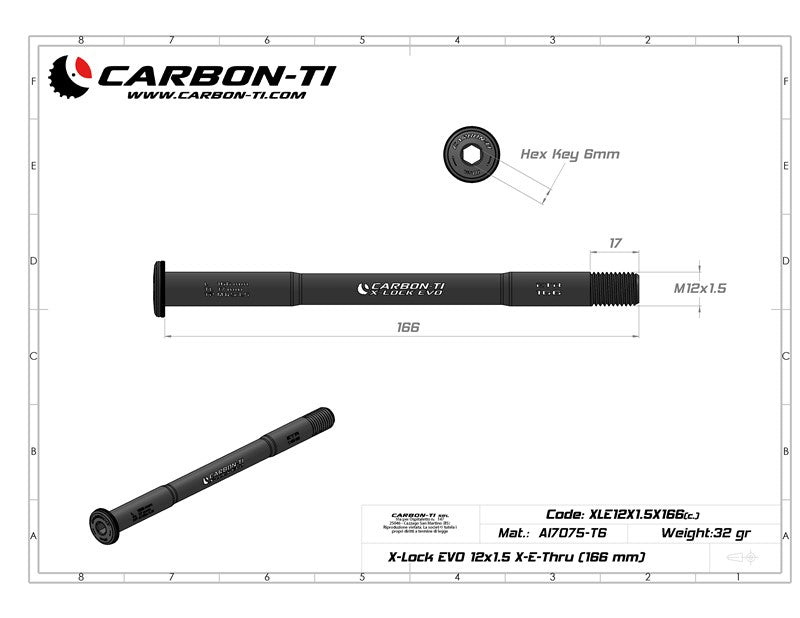

Specifications

Thread
M12x1.5
Axle diameter
12 mm
Total length
166 mm
Threaded section
17 mm
Axle standard
12x142 Shimano E-Thru road
Hub spacing
12x142
Tool to fit
6 mm hex key (not included)
Weight
31 g
Material
7075-T6 aluminum alloy
Finish
Color anodized: Matte Black
Made in
Italy

What's included

  • One Carbon-Ti X-Lock EVO 12x1.5 X-E-Thru (166 mm) Rear Thru-Axle (in the color you select)

Not included: A hex key, and any hub end caps, washers or spacers. The axle is tightened with a 6 mm hex key, which is a standard tool and is not in the box.

Will it fit your bike?

Compatible with

  • Frames built to the 12x142 Shimano E-Thru road standard, taking a 166 mm axle with an M12x1.5 thread
  • Basso:
    • Diamante SV (2021)
    • Palta (2020)
  • Bianchi:
    • Oltre XR4 Disc (2019)
    • Specialissima Disc (2021)
    • Zolder Pro (2019)
  • Cinelli: Pressure (2021)
  • Pinarello: Prince Disk (2019)
  • Tred: Aracnide Titanio (2019)
  • Ridley: Noah

Not compatible with

  • Frames built for a different axle length, thread pitch or axle diameter

Confirm before ordering

If you are not sure of your frame's axle length or thread pitch, measure the axle already in the bike.

You can also ask your bike mechanic, or contact Hammer & Howl before ordering.

Three things decide fit: the length, the thread pitch and the axle diameter. This axle is 166 mm long, M12x1.5, and 12 mm across, with a 17 mm threaded section.

Newer model years and other frames may also fit. Measure the axle your bike came with, or check your frame maker's axle specification.

This pairs well with

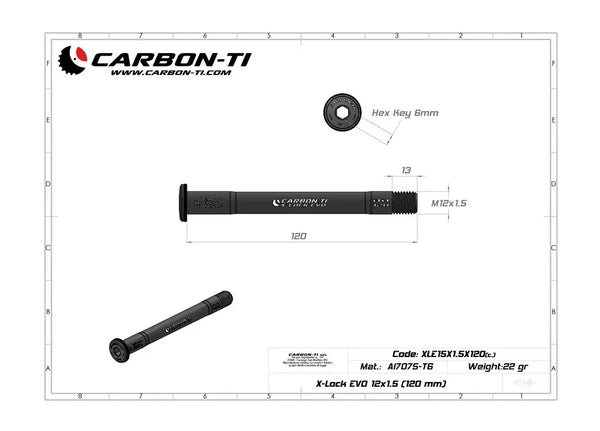

Carbon-Ti X-Lock EVO 12x1.5 (120 mm) Front Thru-AxleThru-axle
