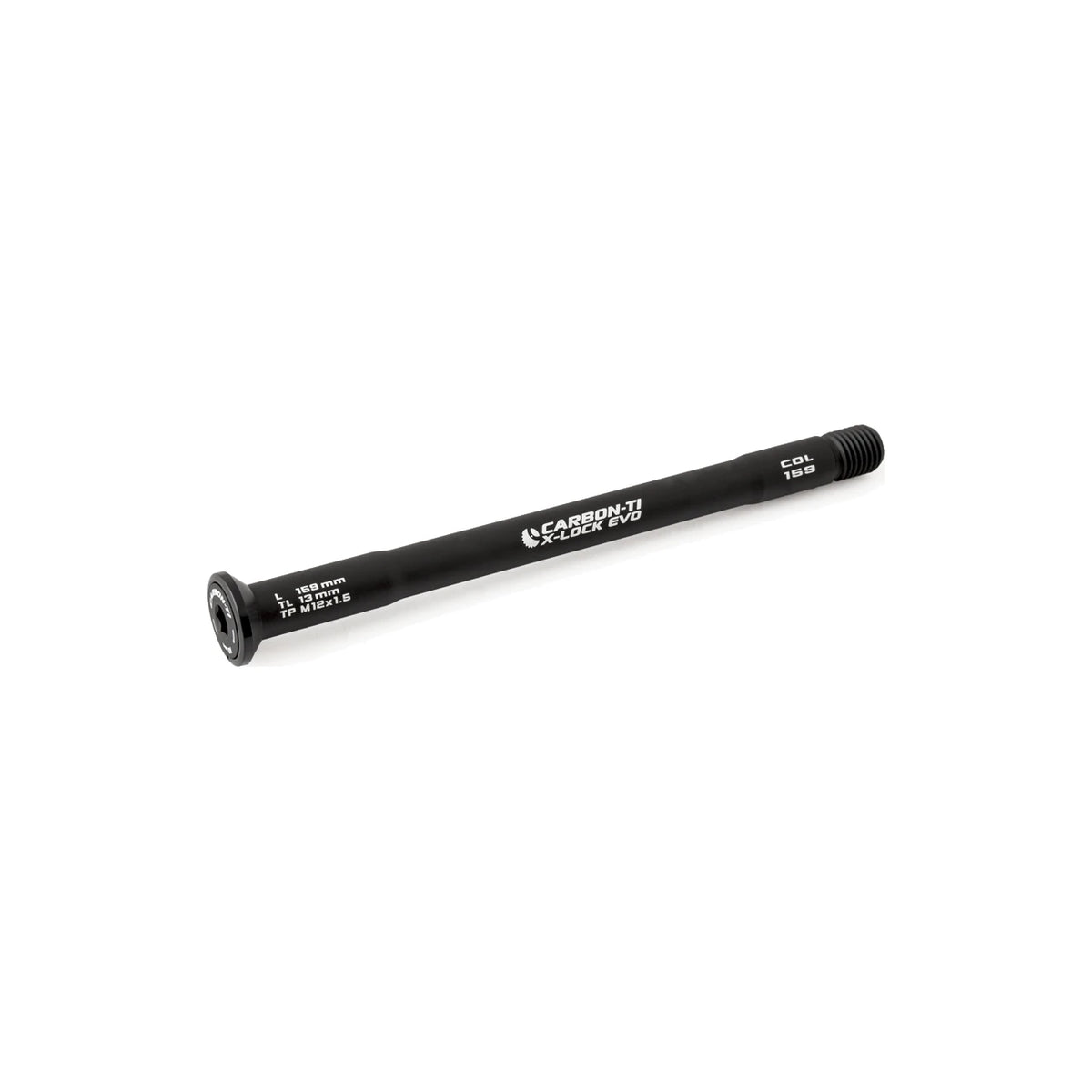

Carbon-Ti X-Lock EVO 12x1.5 X-Colnago (159 mm) Rear Thru-Axle in Matte Black, hero view

Click anywhere or press Esc to close.

Carbon-TiX-Lock EVO 12x1.5 X-Colnago (159 mm) Rear Thru-Axle

$74.00
Built for
  • road
  • gravel
Key specs
Color
Matte Black

Does it fit my bike?

Sold out Ships from Seattle, WA

  • Free USPS Ground Advantage on orders of $50 or more.
  • $5 flat rate USPS Ground Advantage on orders under $50.
  • Expedited shipping is available for $10 via USPS Priority Mail.

Overview

The Carbon-Ti X-Lock EVO 12x1.5 X-Colnago (159 mm) Rear Thru-Axle is a bolt-on rear thru-axle, machined from 7075-T6 aluminum alloy in Italy. It is made for frames built to the 12x142 Colnago rear standard.

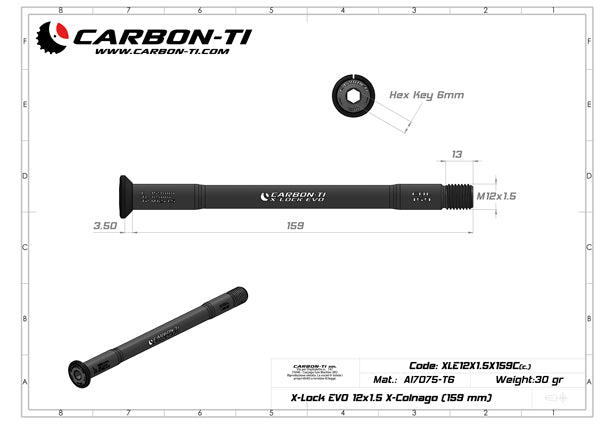

It is 159 mm long, with an M12x1.5 thread and a 13 mm threaded section. It is tightened with a 6 mm hex key. It weighs 30.5 g. It is color anodized, in the color you select.

Why we love it

We love Italian hardware on an Italian frame, made to the same standard the frame was.

  • 01At 30.5 g it is machined with a variable wall thickness, saving weight while keeping the rear end stiff.
  • 02The conical head seats precisely in Colnago’s dropout, with laser etched graphics to finish it.
Why it makes the cut. Hammer & Howl only carries parts we believe are among the best in the business. This axle is a well-made match for a Colnago rear triangle.

Specifications

What it is
A bolt-on rear thru-axle
Thread
M12x1.5
Axle diameter
12 mm
Total length
159 mm
Threaded section
13 mm
Head
Conical, 3.5 mm thick
Axle standard
12x142 Colnago rear
Hub spacing
12x142
Tool to fit
6 mm hex key (not included)
Weight
30.5 g
Material
7075-T6 aluminum alloy
Finish
Color anodized: Matte Black
Made in
Italy

What's included

  • One Carbon-Ti X-Lock EVO 12x1.5 X-Colnago (159 mm) Rear Thru-Axle (in the color you select)

Not included: A hex key, and any hub end caps, washers or spacers. The axle is tightened with a 6 mm hex key, which is a standard tool and is not in the box.

Will it fit your bike?

Compatible with

  • Frames built to the 12x142 Colnago rear standard, taking a 159 mm axle with an M12x1.5 thread
  • Colnago: C68 (2023-2025); C64 (2018-2021); V4RS (2023-2024); V3RS & V3 (2019-2021); G3X (2020-2023); V2 (not hexlock) (2018-2020)

Not compatible with

  • Colnago G4X (2024), Steelnovo (2025), Y1RS (2025) and V5RS (2025), which take a different rear axle
  • Frames built for a different axle length, thread pitch or axle diameter

Confirm before ordering

If you are not sure of your frame's axle length or thread pitch, measure the axle already in the bike.

You can also ask your bike mechanic, or contact Hammer & Howl before ordering.

Three things decide fit: the length, the thread pitch and the axle diameter. This axle is 159 mm long, M12x1.5, and 12 mm across, with a 13 mm threaded section.

Newer model years and other frames may also fit. Measure the axle your bike came with, or check your frame maker's axle specification.

Questions

How do I know this is the right axle for my bike?

Three measurements have to match: the total length (159 mm), the thread pitch (M12x1.5) and the axle diameter (12 mm). The easiest check is to measure the axle already in your bike.

What does the thread pitch mean?

M12x1.5 means a 12 mm axle with 1.5 mm between threads. An axle with a different pitch will not thread into your frame, even if the length is right.

What tool do I need?

A 6 mm hex key. It is a standard tool and is not in the box.

Does this go in the front or the rear?

The rear. It is a rear thru-axle, and a front axle is a different length and often a different thread.

My bike is not on the list. Will it still fit?

It may. The list names the frames Hammer & Howl has confirmed. Newer model years and other frames built to the same axle specification also take it, so check your frame maker's axle specification or measure the axle you have.

How much does it weigh?

30.5 g.
