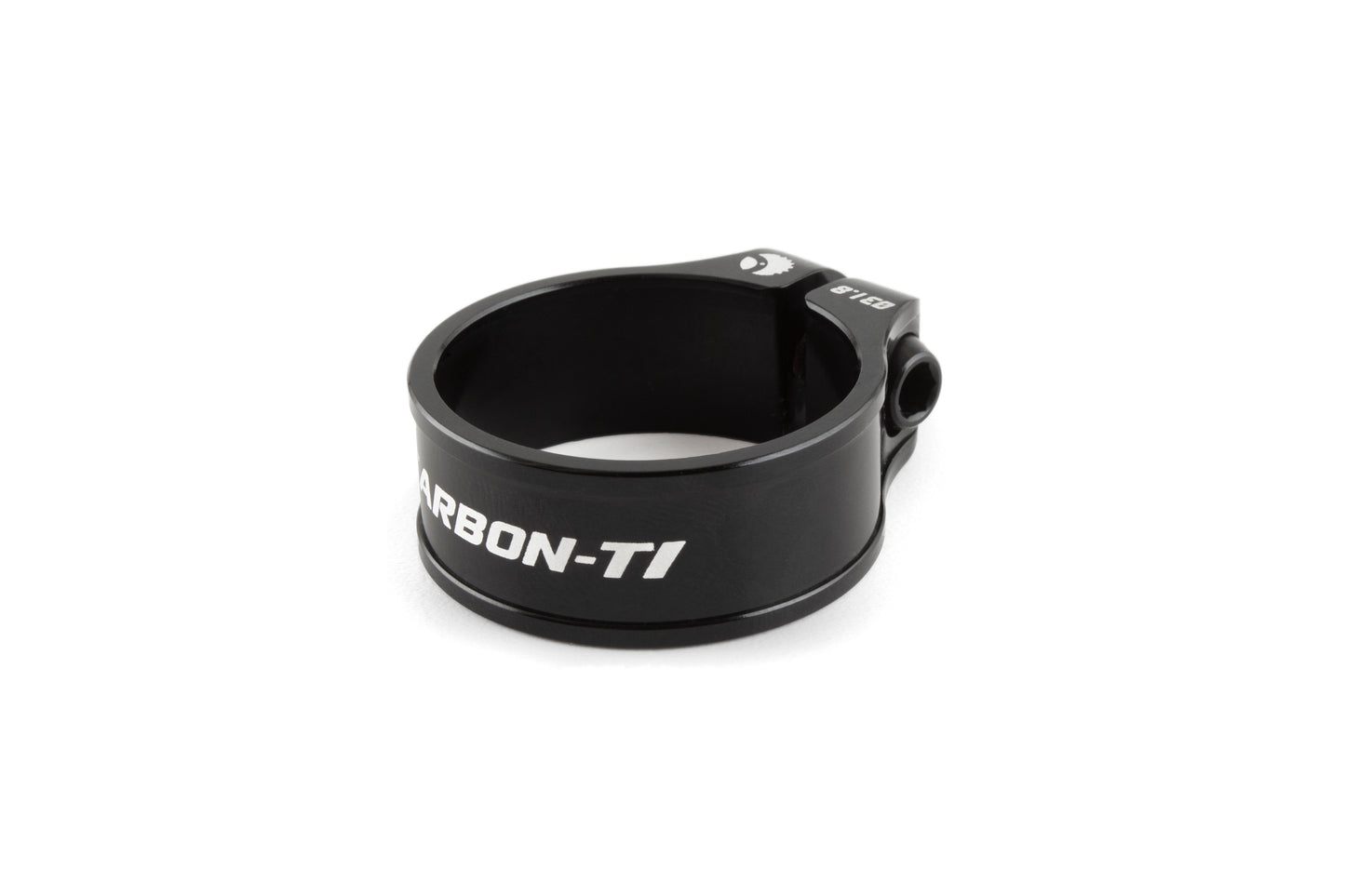

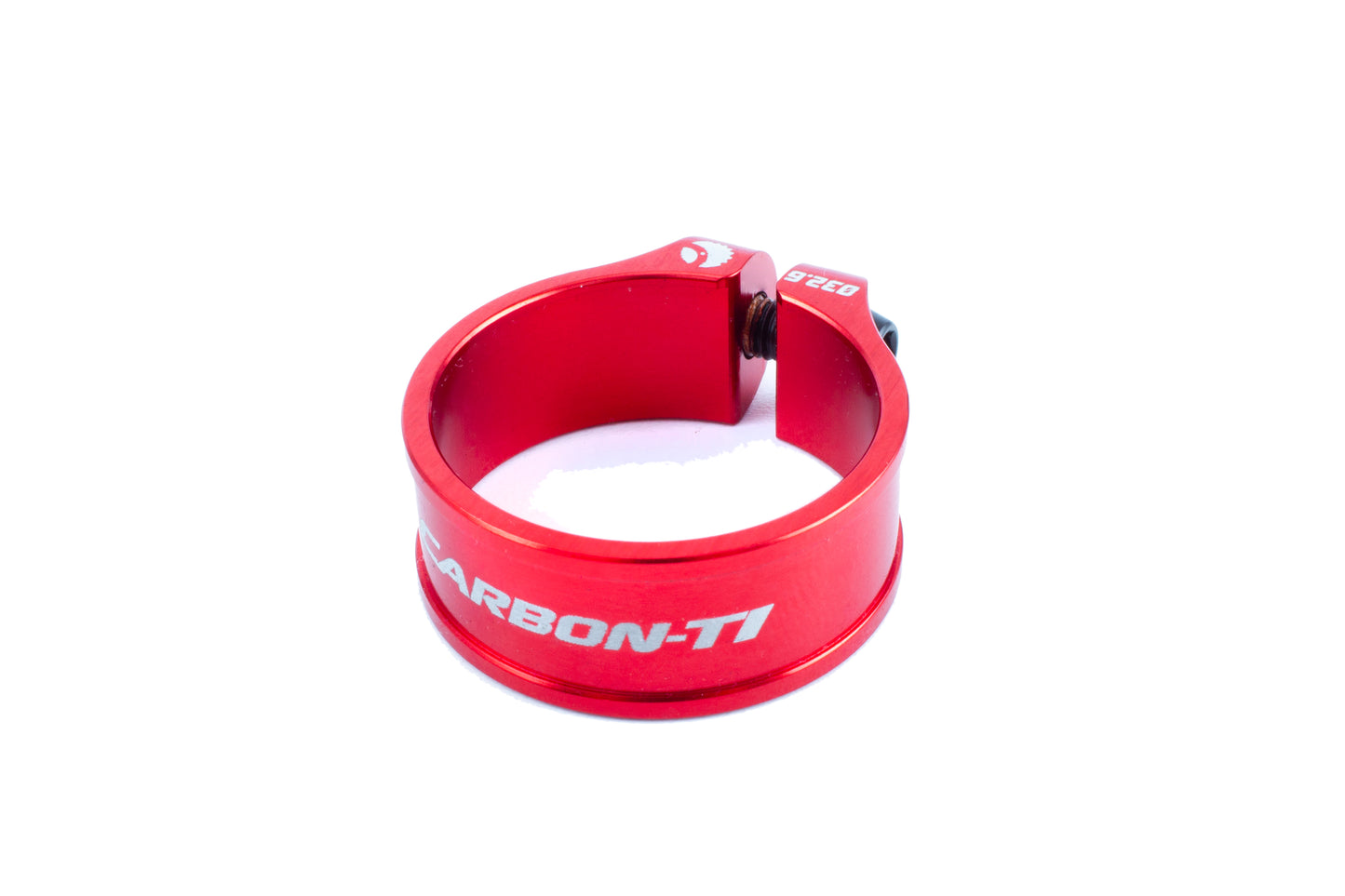

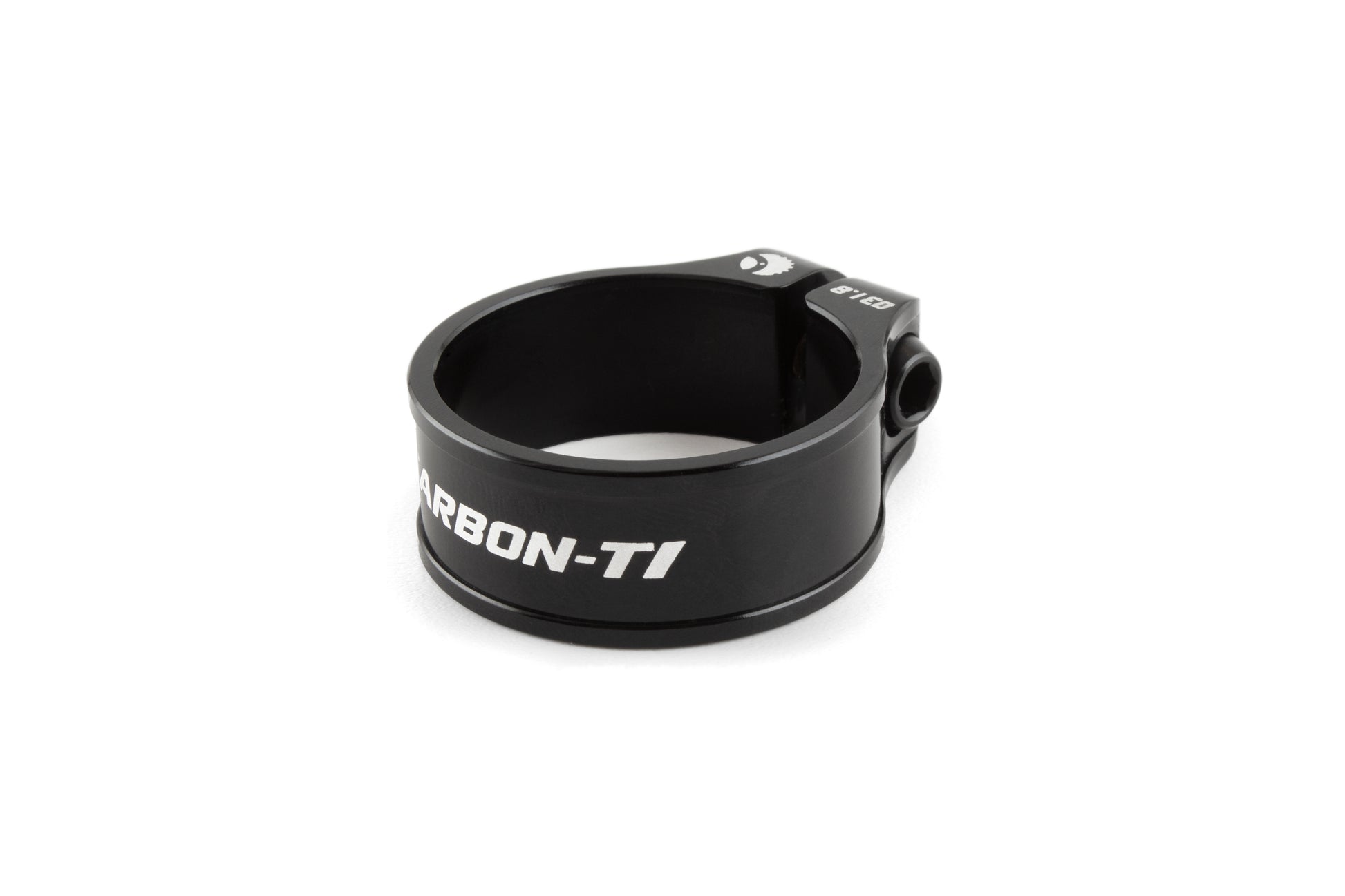

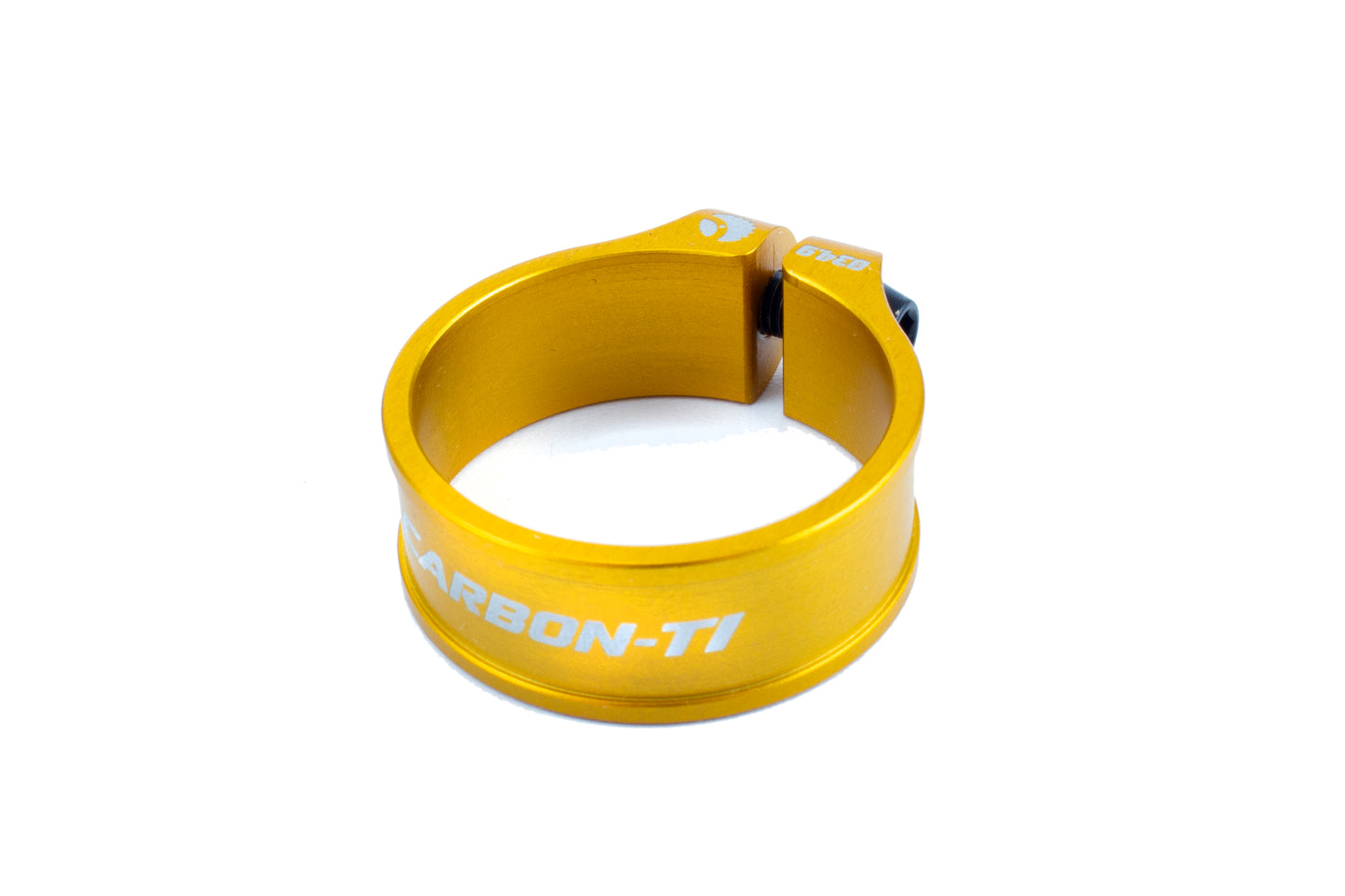

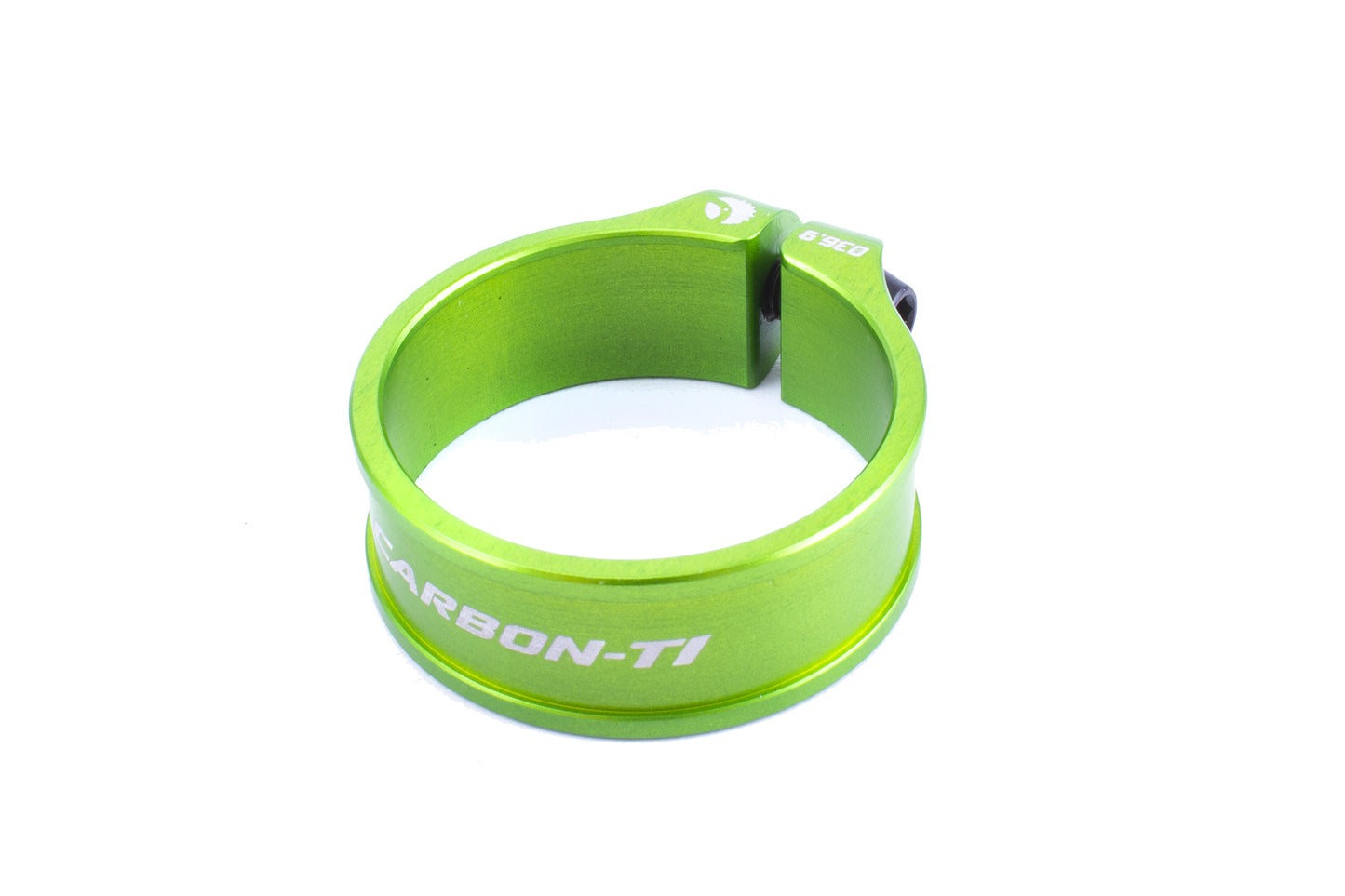

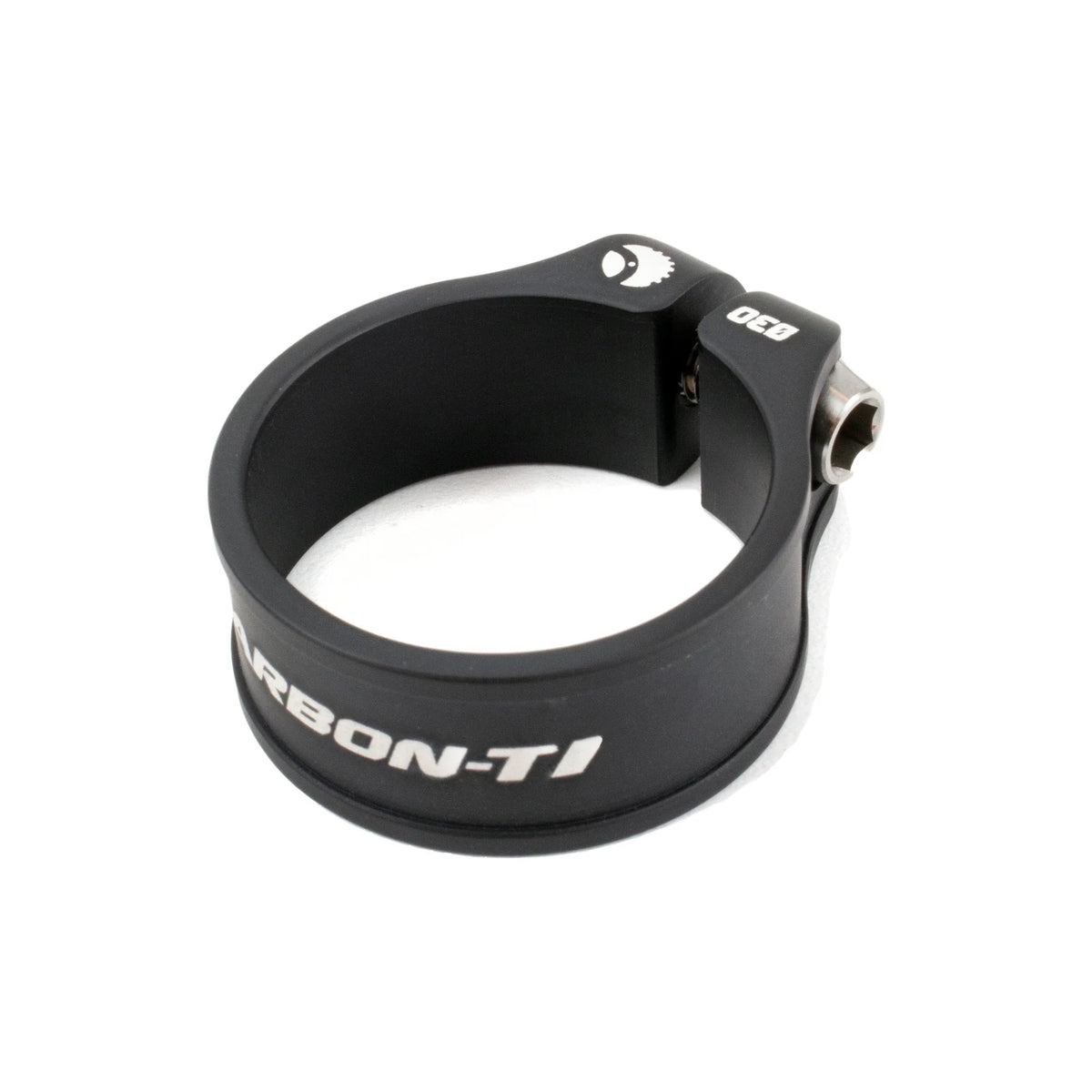

Carbon-TiX-Clamp 3 Seatpost Clamp

$43.00
Built for
  • road
  • gravel
  • mtb
Size
Color

Does it fit my bike?

In stock Ships from Seattle, WA

  • Free USPS Ground Advantage on orders of $50 or more.
  • $5 flat rate USPS Ground Advantage on orders under $50.
  • Expedited shipping is available for $10 via USPS Priority Mail.

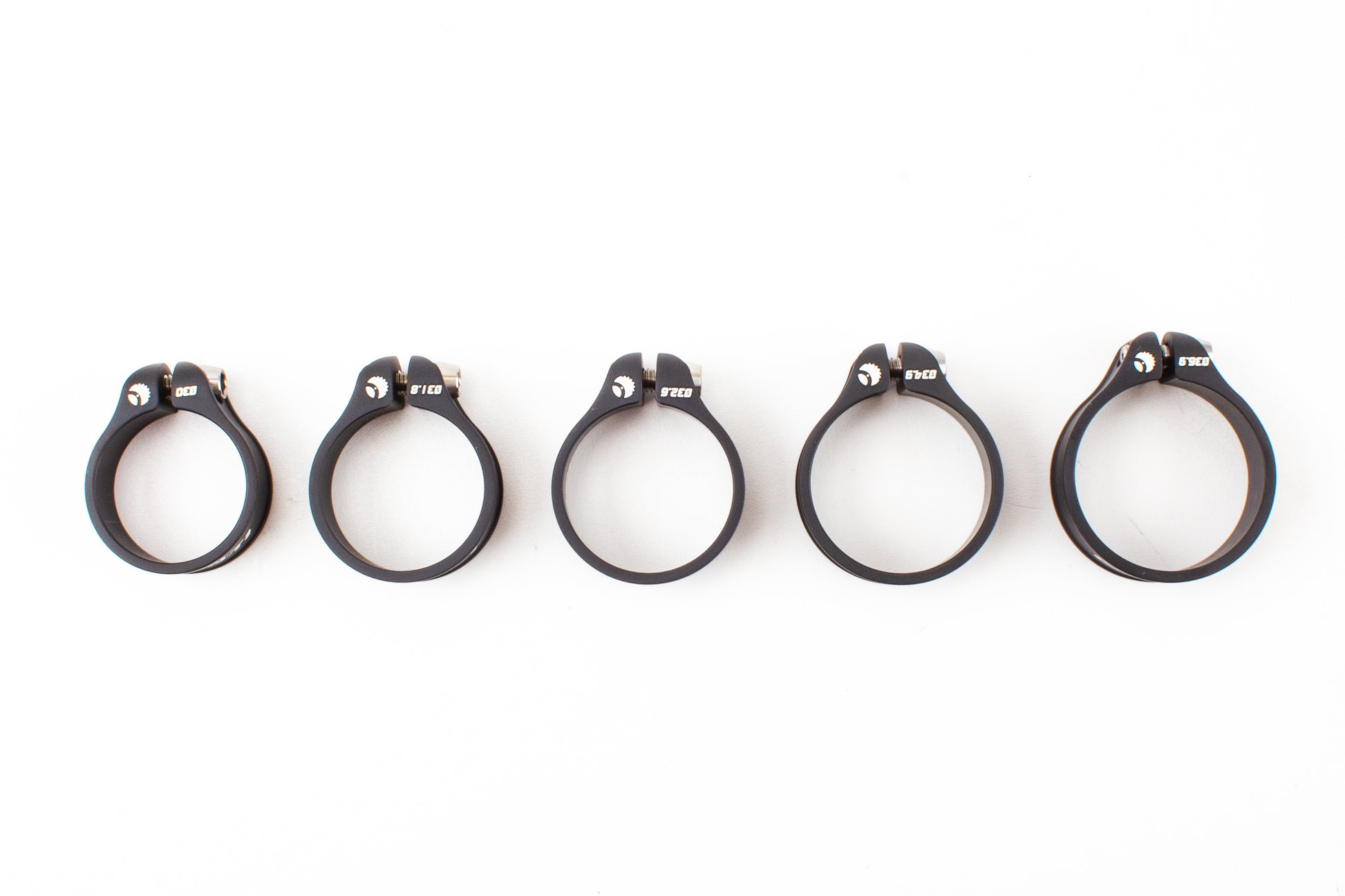

Specifications

Clamp sizeWeight

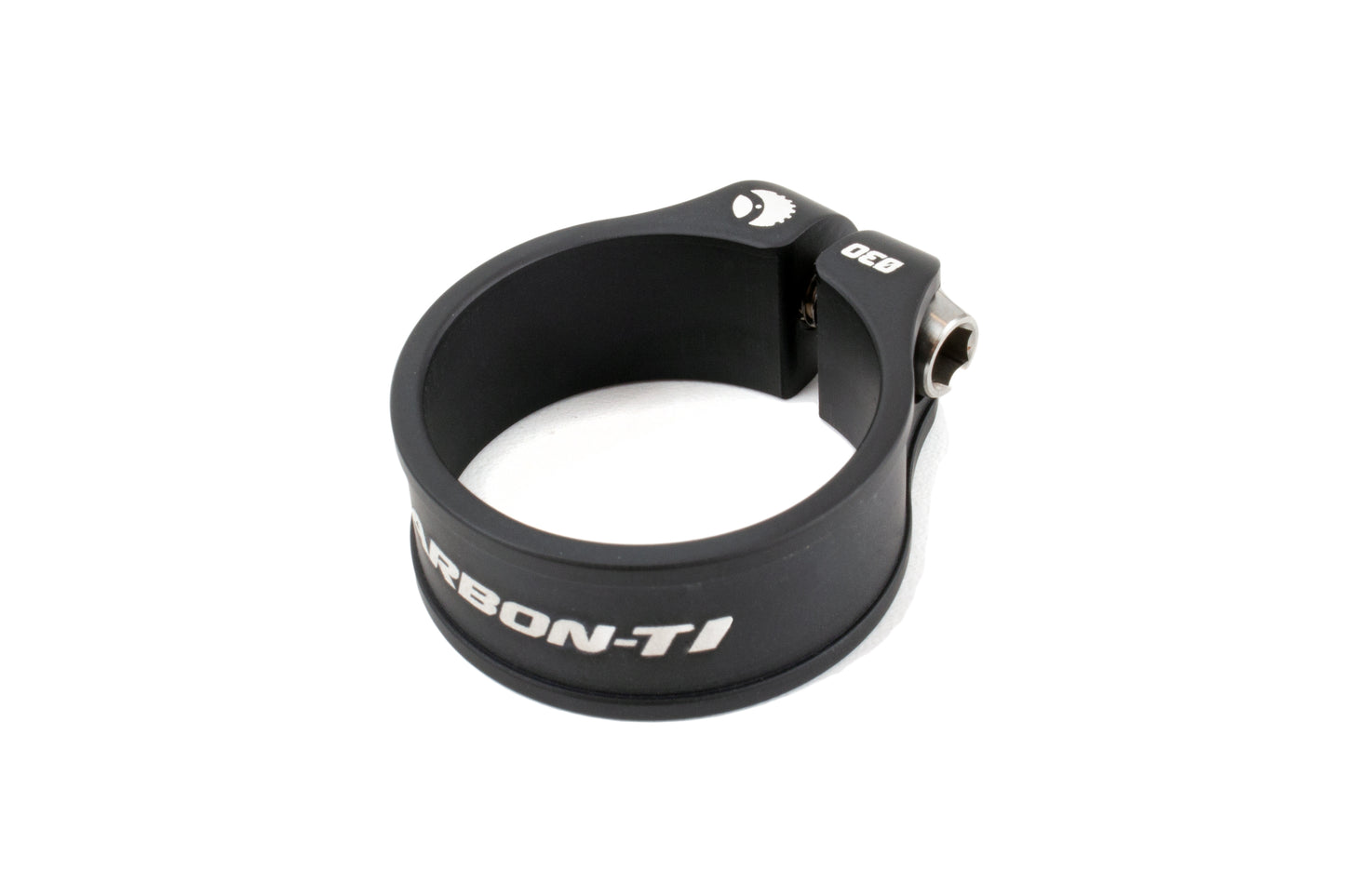

30.0 mm9.4 g

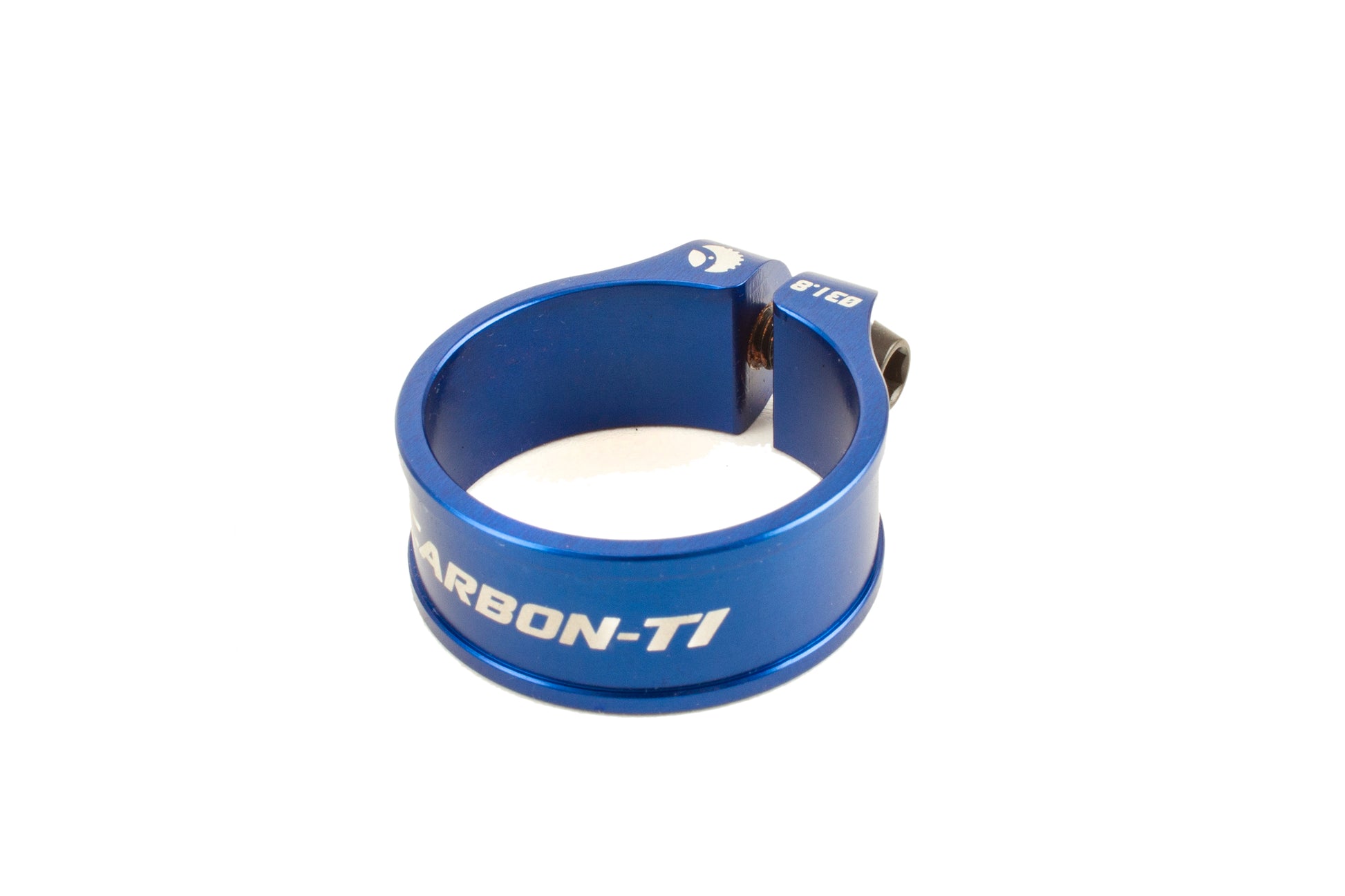

31.8 mm10.2 g

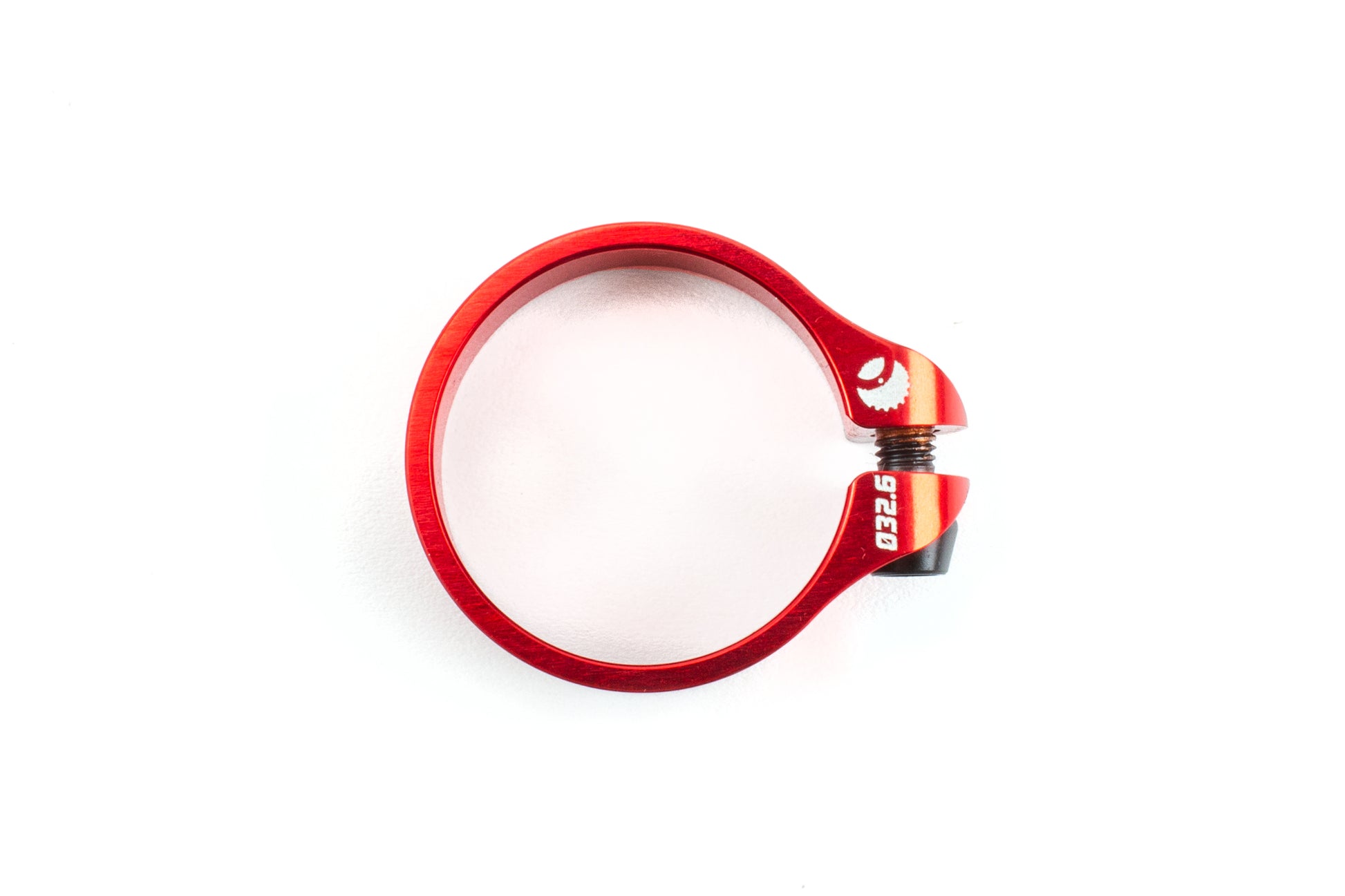

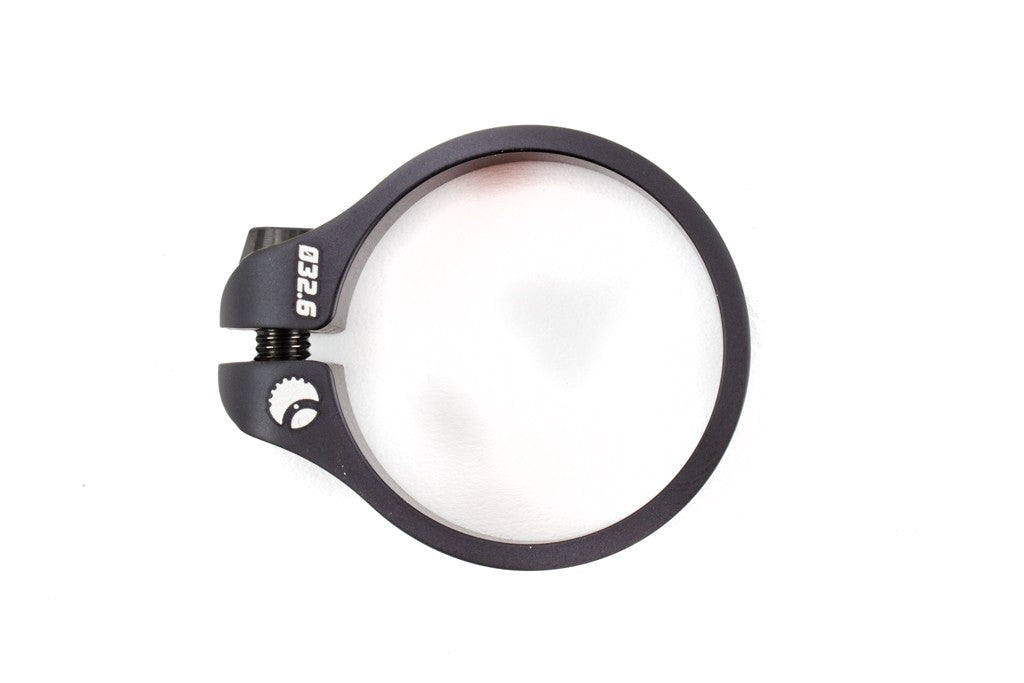

32.6 mm10.2 g

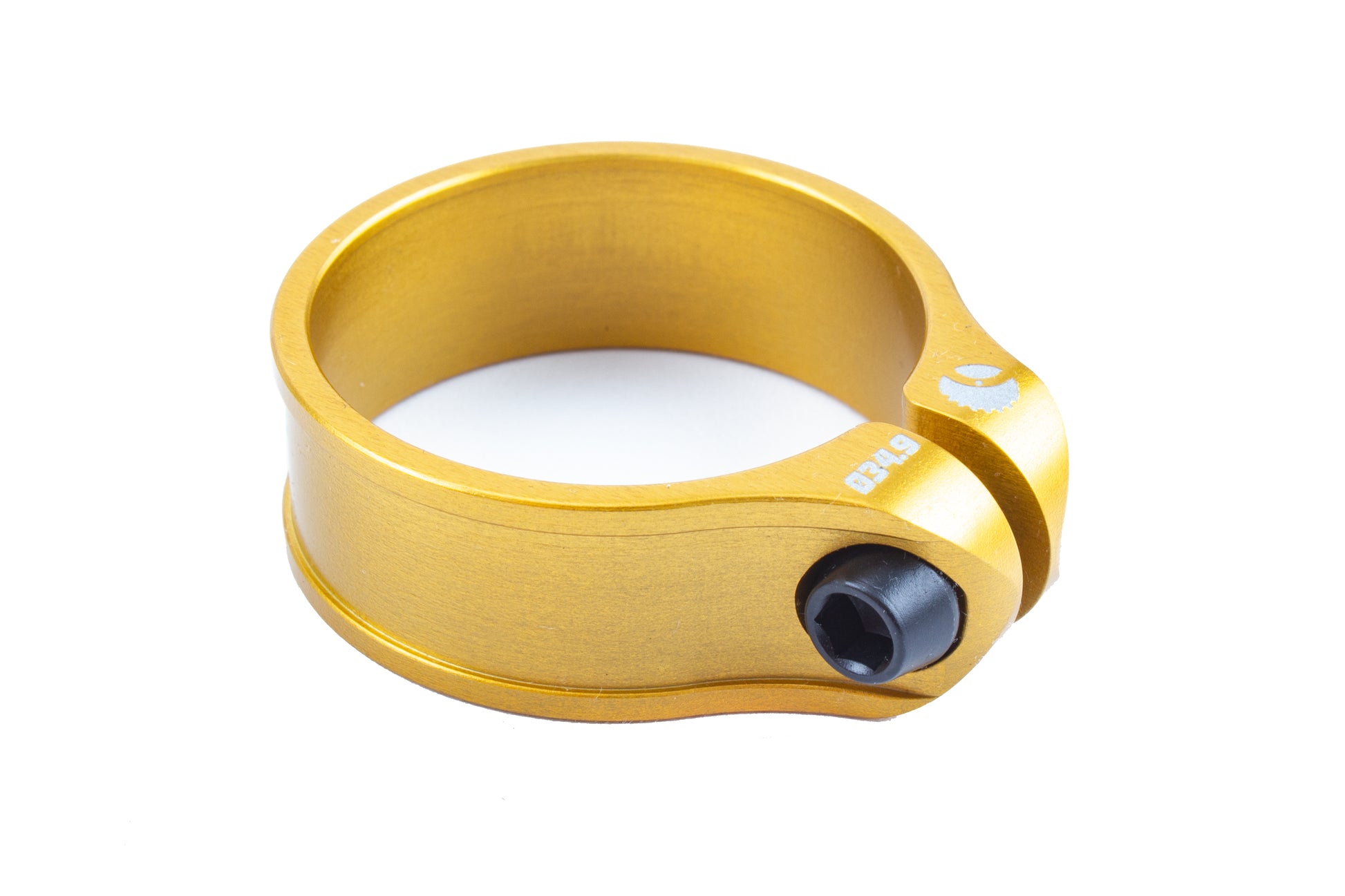

34.9 mm10.4 g
36.4 mm10.8 g
How to size it
Measure the outside diameter of your frame's seat tube at the collar
Material
7075-T6 aluminum alloy body with a Grade 5 titanium bolt
Finish

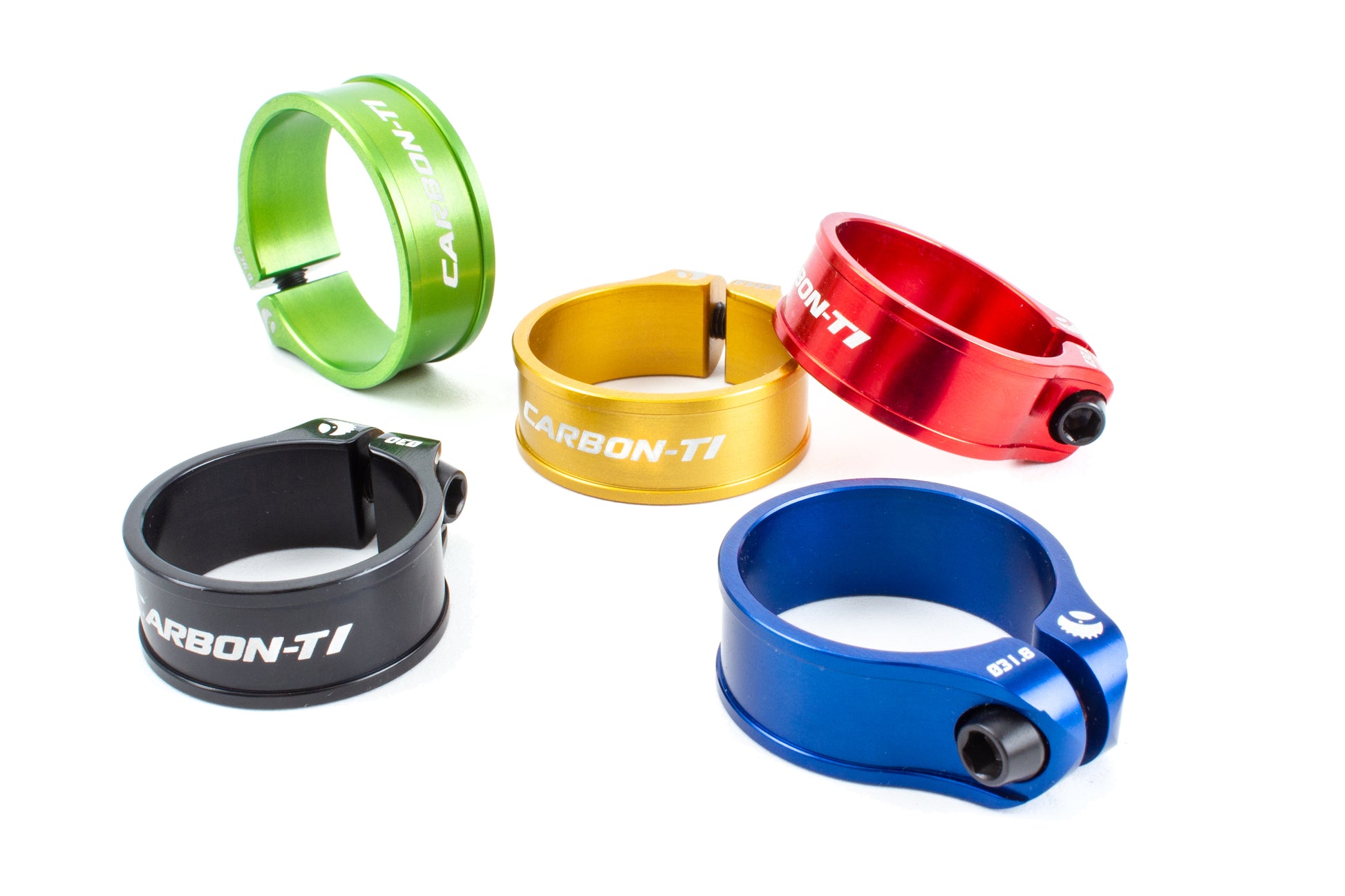

  • Color anodized in 8 colors
  • Mirror polished (30.0, 31.8, 34.9 and 36.4 mm)
Made in
Italy

What's included

  • One Carbon-Ti X-Clamp 3 Seatpost Clamp with its Grade 5 titanium bolt (in the size and color you select)

Not included: A seatpost, and any tool. A seatpost clamp is tightened to the torque figure your frame maker publishes, so a torque wrench is the way to hit it.

Will it fit your bike?

Compatible with

  • Frames with a round seat tube measuring 30.0 mm, 31.8 mm, 32.6 mm, 34.9 mm or 36.4 mm across the outside at the collar
  • Frames specified at a 29.8 mm collar, which take the 30.0 mm clamp
  • Frames specified at a 32.0 mm collar, which take the 31.8 mm clamp
  • Frames specified at a 32.8 mm collar, which take the 32.6 mm clamp
  • Frames specified at a 35.0 mm collar, which take the 34.9 mm clamp
  • Frames specified at a 36.2 mm collar, which take the 36.4 mm clamp
  • Road, gravel and mountain frames alike, and any seatpost diameter that your frame already takes

Not compatible with

  • Frames with an integrated or wedge seat clamp built into the frame
  • Frames with a 33.1 mm seat collar, which falls between the 32.6 mm and 34.9 mm sizes
  • Seat tubes that are not round at the collar

Confirm before ordering

If you are not sure, measure the outside diameter of your frame's seat tube at the collar with a caliper.

You can also ask your bike mechanic, or contact Hammer & Howl before ordering.

One measurement decides fit: the outside diameter of your frame's seat tube at the collar.

Measure the seat tube, not the seatpost. A 27.2 mm seatpost sits inside seat tubes of several different outside diameters, so the post size does not tell you the clamp size.

If your frame maker publishes a seat clamp size, that figure is the one to use.
