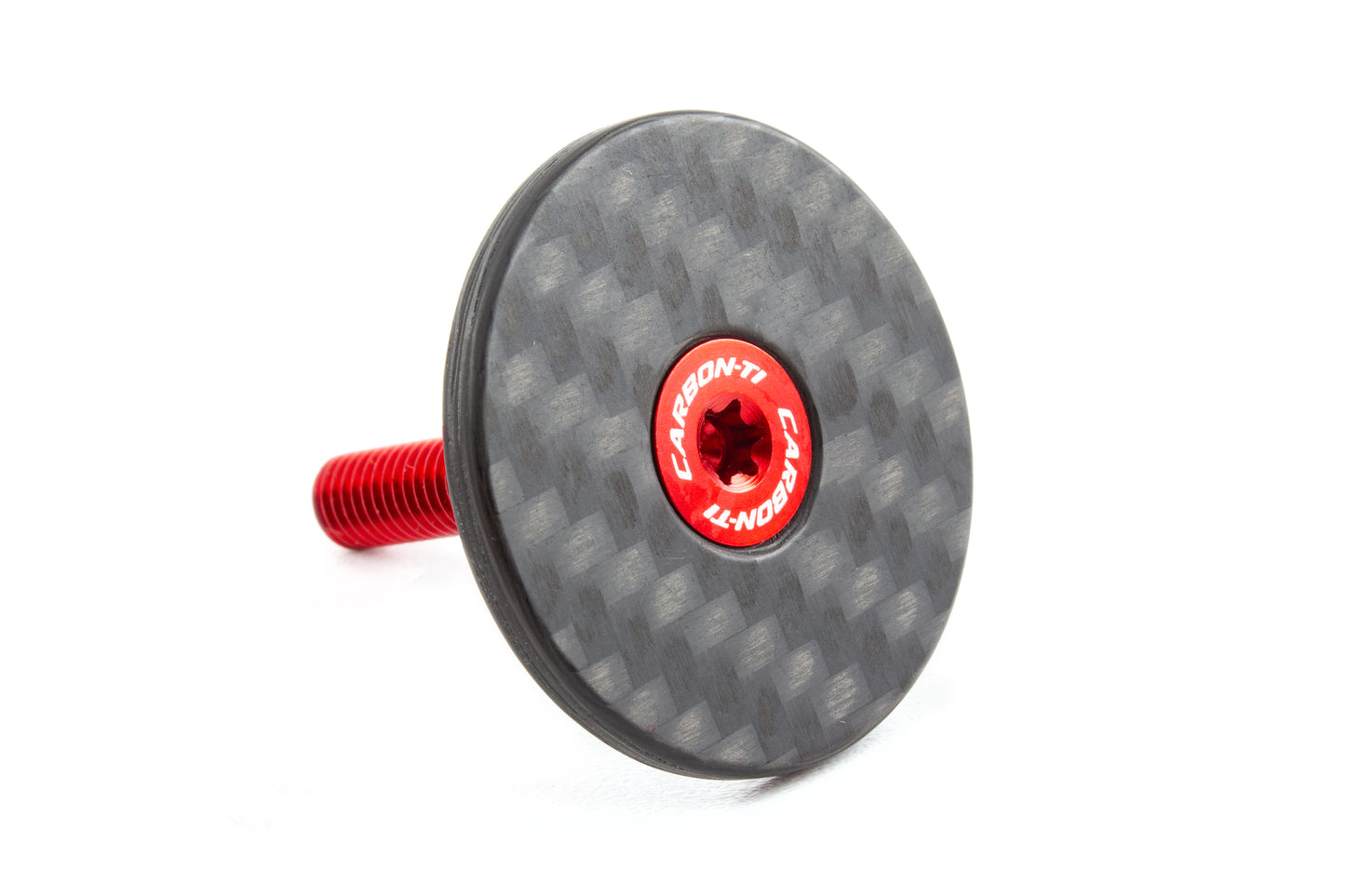

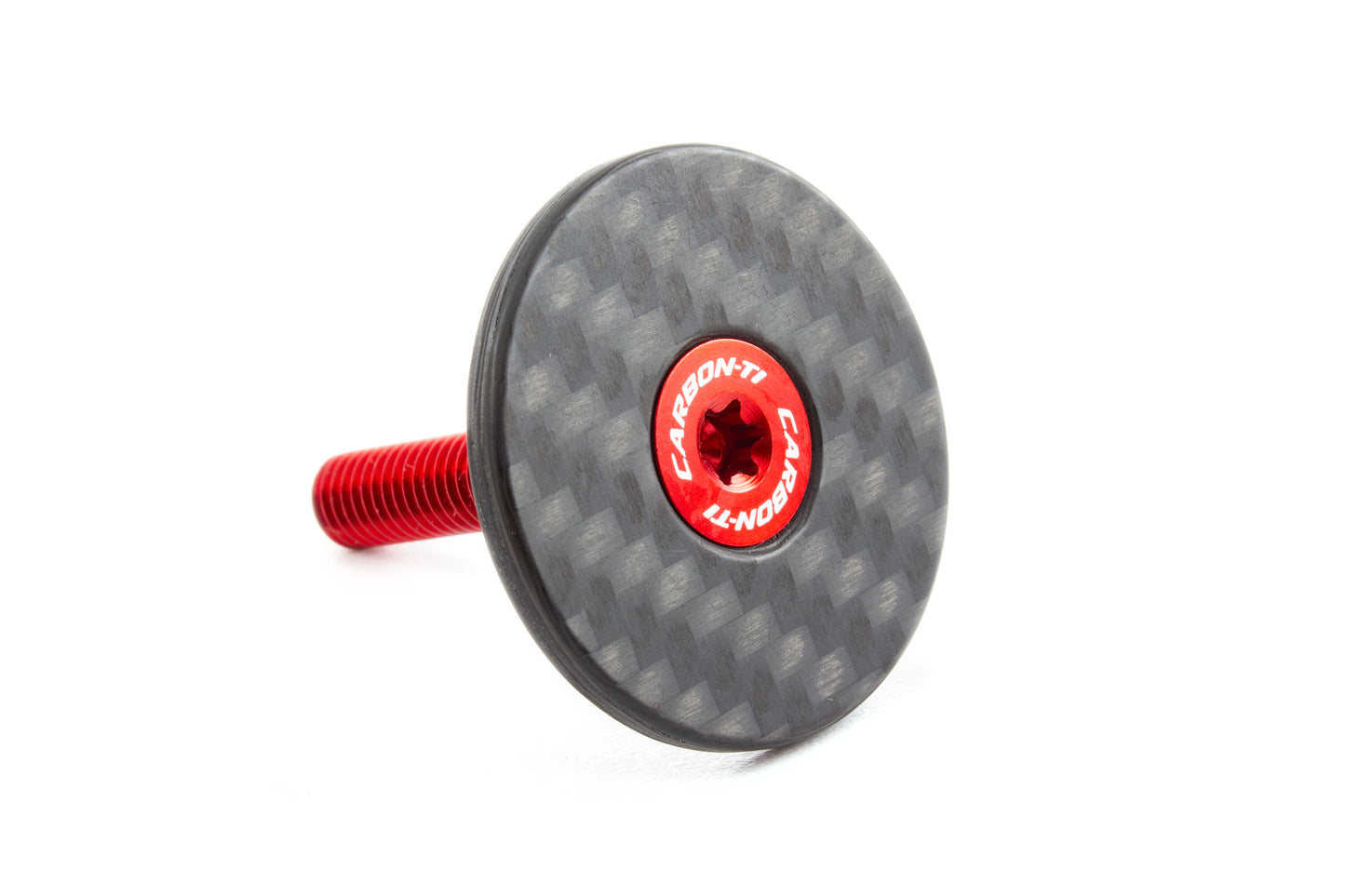

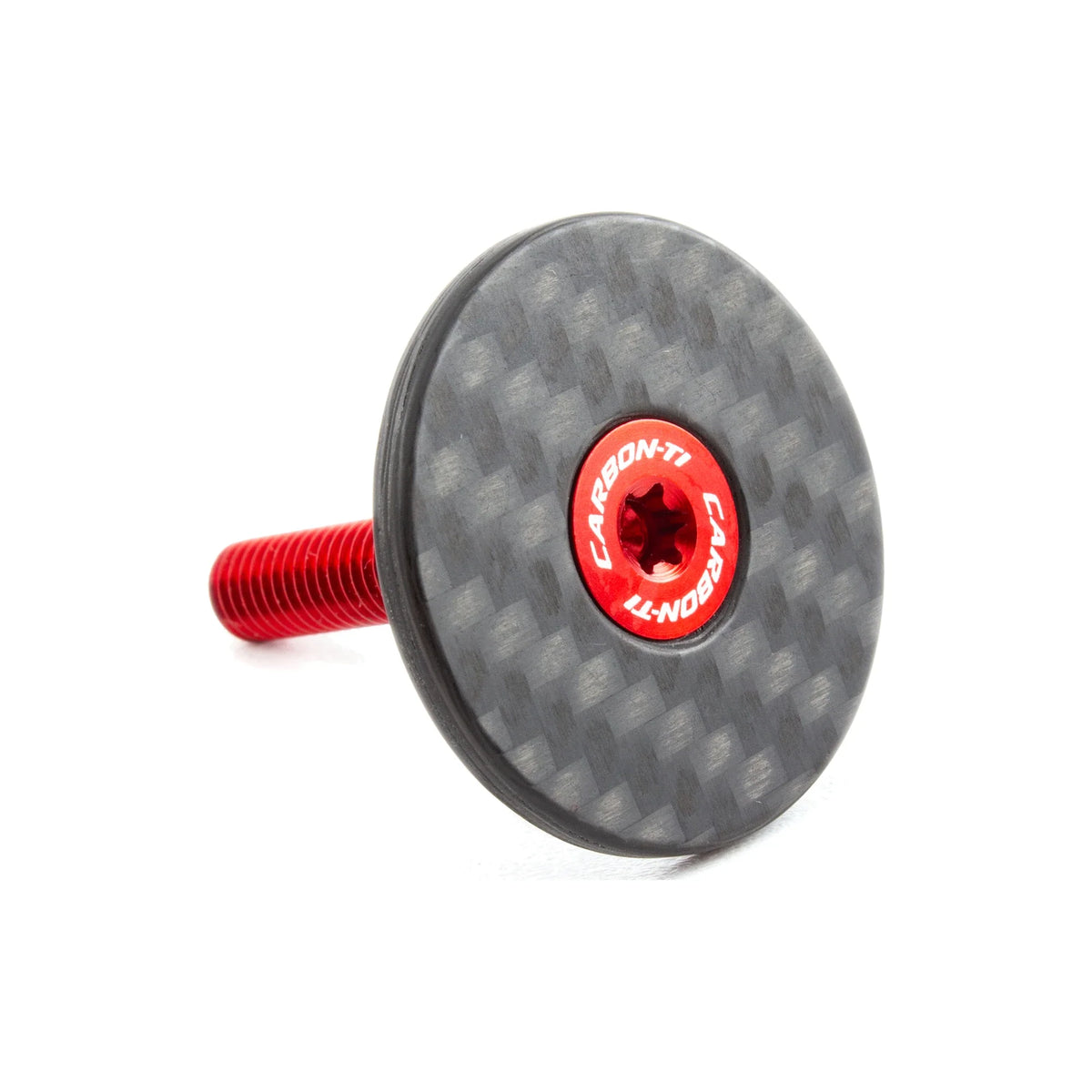

Carbon-Ti X-Cap Carbon Matte stem cap in Red.

Click anywhere or press Esc to close.

Carbon-TiX-Cap Carbon Matte Stem Cap

$22.00
Built for
  • road
  • gravel
  • mtb
Size 1 1/8"
Color Red

Does it fit my bike?

In stock Ships from Seattle, WA

  • Free USPS Ground Advantage on orders of $50 or more.
  • $5 flat rate USPS Ground Advantage on orders under $50.
  • Expedited shipping is available for $10 via USPS Priority Mail.

Overview

The Carbon-Ti X-Cap Carbon Matte Stem Cap is a headset top cap for a threadless steerer. It is machined from carbon fiber in Italy, with a matte finish.

It is made in two sizes. The standard cap fits most 1 1/8 inch steerers, and the Over Sized cap fits most 1 1/4 inch steerers. Select the size that matches your steerer.

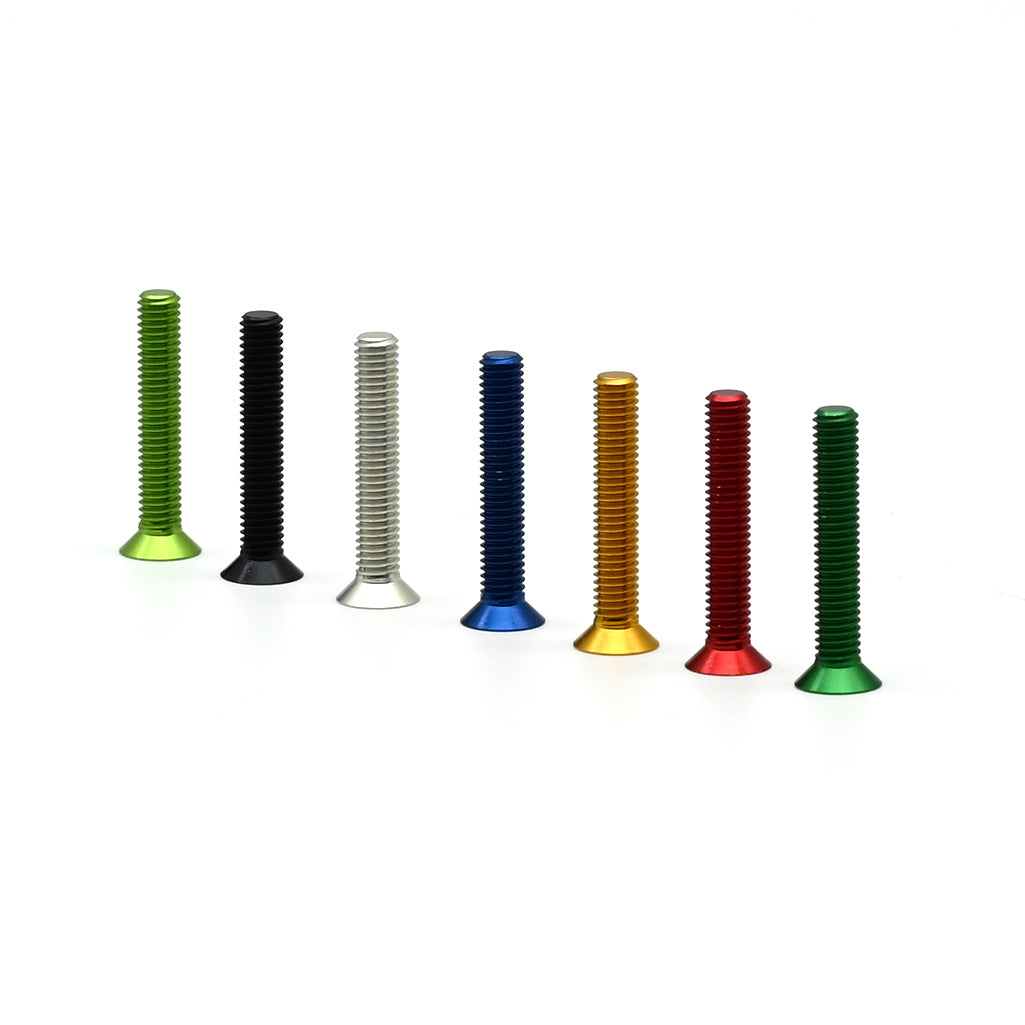

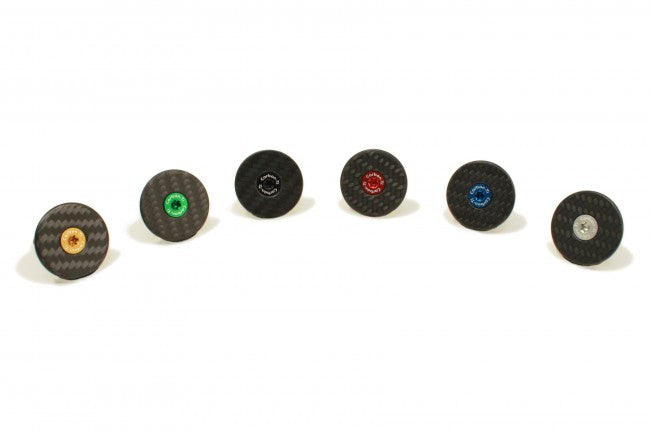

It comes with an AL7075-T6 TORX bolt. The color you select is the bolt's color. The cap itself is matte carbon in every option.

The standard cap and bolt weigh 5.2 g. The Over Sized pair weigh 5.5 g.

Why we love it

We love that a part you look at every ride can weigh almost nothing and still stand out.

  • 01The cap is machined from 3K carbon fiber with a matte finish, so it dresses up the top of your bike where you see it most.
  • 02It comes with a color anodized Al7075 Torx bolt, and you choose which color, so the accent is yours to pick.
  • 03At around 5 grams it is far lighter than most stock top caps, a small saving in a place that is easy to upgrade.
Why it makes the cut. Hammer & Howl only carries parts we believe are among the best in the business. It is an easy, good-looking finishing touch for a threadless headset.

Specifications

What it is
A headset top cap for a threadless steerer
Sizes
1 1/8" and 1 1/4" (Over Sized)
Cap material
3K carbon fiber
Cap finish
Matte
Bolt
AL7075-T6 aluminum, color anodized, TORX T25
What the color changes
The bolt. The cap is matte carbon in every option.
Color choice
9 colors
Weight
5.2 g (1 1/8"); 5.5 g (1 1/4" Over Sized)
Made in
Italy

What's included

  • One Carbon-Ti X-Cap Carbon Matte Stem Cap (in the size you select)
  • One AL7075-T6 aluminum TORX bolt (in the color you select)

Not included: A star nut or an expander plug, and a TORX T25 wrench. A top cap needs a star nut or an expander plug already fitted in the steerer for the bolt to pull against. The matching expander plugs are the Carbon-Ti X-Plug for a 1 1/8 inch steerer and the Carbon-Ti X-Plug OS for a 1 1/4 inch steerer.

Will it fit your bike?

Compatible with

  • Threadless headsets with a 1 1/8 inch steerer, using the standard cap
  • Threadless headsets with a 1 1/4 inch Over Sized steerer, using the Over Sized cap
  • Carbon, aluminum and steel steerers, with a star nut or an expander plug already fitted
  • Road, gravel and mountain bikes alike

Not compatible with

  • Threaded headsets, which use a locknut rather than a top cap
  • Steerers with no star nut and no expander plug fitted
  • Steerer diameters outside 1 1/8 inch and 1 1/4 inch

Confirm before ordering

If you are not sure of your steerer size, or whether a star nut or expander plug is fitted, check with your bike mechanic.

You can also contact Hammer & Howl before ordering.

Two things decide fit: the steerer diameter and what is already inside the steerer.

Select the standard cap for a 1 1/8 inch steerer and the Over Sized cap for a 1 1/4 inch steerer. The steerer needs a star nut or an expander plug fitted, because that is what the top cap bolt pulls against to set your headset preload.

Questions

Which size do I need?

Match the cap to your steerer. The standard cap is for a 1 1/8 inch steerer, which is the common size. The Over Sized cap is for a 1 1/4 inch steerer.

Which part does the color apply to?

The bolt. The cap is matte carbon in every option, and the AL7075-T6 bolt that comes with it is color anodized in the color you select.

Do I need anything else to fit it?

Your steerer needs a star nut or an expander plug already in it. If yours has neither, the Carbon-Ti X-Plug suits a 1 1/8 inch steerer and the Carbon-Ti X-Plug OS suits a 1 1/4 inch steerer.

Is there a gloss version?

Yes. The Carbon-Ti X-Cap Carbon Gloss Stem Cap is the same cap with a gloss finish, in the 1 1/8 inch size.

What tool do I need?

A TORX T25 wrench, which is a standard shop tool. Tighten to your frame maker's top cap figure, because this bolt sets your headset preload.

Can I buy the bolt on its own?

Yes. The Carbon-Ti X-Cap TORX Spare Bolt is the same bolt, sold as a spare or in a different color.

This pairs well with

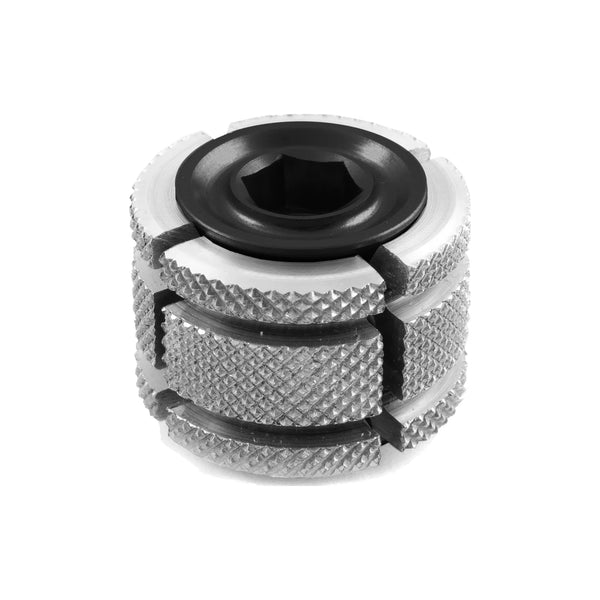

Carbon-Ti X-Plug OSHeadset expanderCarbon-Ti X-PlugHeadset expander
