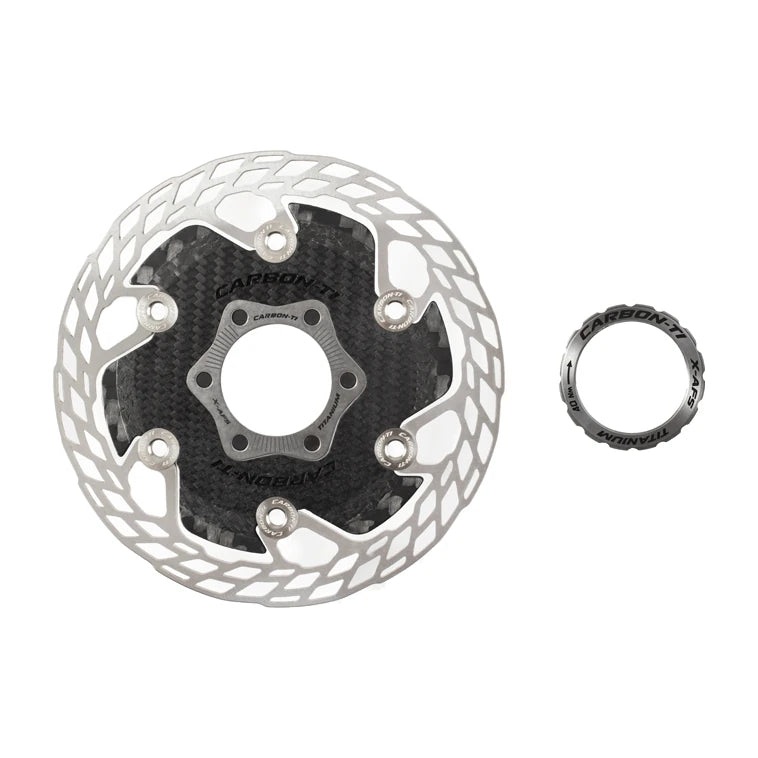

Carbon-Ti X-Rotor Aero 140 mm X-AFS brake rotor with its lockring.

Click anywhere or press Esc to close.

Carbon-TiX-Rotor Aero X-AFS

$320.00
Built for
  • road
Rotor diameter 140 mm

Does it fit my bike?

Sold out Ships from Seattle, WA

  • Free USPS Ground Advantage on orders of $50 or more.
  • $5 flat rate USPS Ground Advantage on orders under $50.
  • Expedited shipping is available for $10 via USPS Priority Mail.

Overview

This is the X-AFS version of the Carbon-Ti X-Rotor Aero, a very light disc brake rotor built for speed, from 94g. It is built for Campagnolo and Fulcrum wheels that use the AFS disc mount. Its carbon body is shaped in the wind tunnel to cut drag, and it keeps the same stainless steel braking track as the SteelCarbon 3 line. It is made in 140mm and 160mm. It arrives ready to fit, with its own Al7075 adapter and a Grade 5 titanium AFS lockring.

Why we love it

We love a rotor built to cut drag that also fits a Campagnolo or Fulcrum wheel built for AFS.

  • 01Its carbon body is shaped in the wind tunnel to slip through the air, and it keeps the same stainless steel braking track as the SteelCarbon 3.
  • 02The steel braking surface is built to shed heat efficiently and wear the pads evenly.
  • 03It was developed to meet the needs of the UAE Team Emirates World Tour team for time trials and high-speed road races, and professional riders have raced the X-Rotor Aero in competition.
Why it makes the cut. Hammer & Howl only carries parts we believe are among the best in the business. It is a sharp finishing touch for a fast build.

Specifications

Rotor size
140mm or 160mm
How to size it
Measure the outside diameter of the rotor on your bike, or check your frame and fork specification
Weight
94 g (140mm); 114 g (160mm)
Mount
X-AFS, for Campagnolo and Fulcrum AFS hubs
Body
Aerodynamic carbon body, wind-tunnel shaped
Braking surface
Stainless steel braking track, shared with the SteelCarbon 3
Rivets and washers
Grade 5 titanium rivets and washers, plus a Grade 5 titanium protection plate
Lockring
Grade 5 titanium, made for AFS hubs, laser etched
Edges
Rounded, CNC-machined (complies with UCI regulations)
Best for
Road racing, time trials, and triathlon
Brake pads
Works with any disc brake pad; organic pads are the recommended match
Tool to install
A Hollowtech II bottom bracket tool (not included)
Made in
Italy

What's included

  • One Carbon-Ti X-Rotor Aero X-AFS rotor
  • Its Al7075 AFS adapter and Grade 5 titanium protection plate
  • One Grade 5 titanium AFS lockring, laser etched

Not included: A lockring tool. The AFS lockring is fitted with a Hollowtech II bottom bracket tool, which is a standard shop tool and is not in the box.

Will it fit your bike?

Compatible with

  • Campagnolo and Fulcrum wheels and hubs built for the AFS disc mount, on road, time trial, and triathlon bikes
  • AFS hubs built for 12, 15, or 20mm thru-axles (the low-profile AFS lockring suits all three)
  • Rotor sizes 140mm and 160mm, so you can match the size your bike is built for

Not compatible with

Confirm before ordering

If you are not sure which disc mount or rotor size your bike needs, confirm with your bike mechanic or contact Hammer & Howl before ordering.

Two things decide fit: the mount and the size. Your wheels need the Campagnolo and Fulcrum AFS disc mount, and the rotor size you select must match what your frame, fork, and brake calipers are built for.

Moving to a bigger or smaller rotor can need a different caliper mount adapter.

The rotor comes with the Al7075 adapter and the AFS lockring it needs, so no separate adapter kit is required.

Questions

Will these fit my Campagnolo or Fulcrum wheels?

Yes, if your wheels are built for the AFS disc mount. This is an AFS rotor, and it comes with its own Al7075 adapter and a Grade 5 titanium AFS lockring, so it is ready to fit.

What is the AFS disc mount?

It is a rotor mounting standard used on some Campagnolo and Fulcrum disc wheels and hubs. It is neither Center Lock nor 6-bolt, so it takes an AFS rotor. Check your wheel's specification to confirm the AFS mount before ordering.

What rotor size should I choose?

Match the size your frame, fork, and brake calipers are built for, usually 140mm or 160mm. Moving to a different size can need a different caliper mount adapter, so check your setup or ask your mechanic.

Does it come with a lockring?

Yes. It comes with a Grade 5 titanium lockring made for AFS hubs, along with its Al7075 adapter and a Grade 5 titanium protection plate.

Is the Aero heavier than the SteelCarbon 3?

Yes. The aerodynamic carbon body adds some weight, which the Aero trades for lower drag at speed. Braking is the same, since the steel track is shared.

Can I use it on a Center Lock or 6-bolt hub?

No. This rotor is made for the AFS disc mount only. For a Center Lock hub choose the Carbon-Ti X-Rotor Aero Center Lock, and for a 6-bolt hub choose the Carbon-Ti X-Rotor Aero 6-Bolt.

Are these UCI approved?

Yes, they comply with UCI regulations. The disc profile has rounded, CNC-machined edges.
